Mini-E-PA-1064 1064 nm Miniature LD Pumped All-Solid-State Passively Q-Switched Laser
$1,000,000.00
Description: Miniature all solid state passively Q-switched laser at 1064 nm with high peak power and short pulse duration.
Applications: marking, micro-machining, scientific research
Model #: Mini-E-PA-1064
| Wavelength (nm) | 1064±1 |
| Operating Mode | Passively |
| Average Power (W) | ≥4 |
| Single Pulse Energy (µJ) | >200 |
| Rep. Rate | 10-20 kHz |
| Pulse Duration (ns) | ~5 |
| Peak Power (kW) | ~40 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1% |
| Transverse Mode | TEM00 |
| Beam Divergence, Full Angle (mrad) | <3.5 |
| Beam Diameter at the Aperture (mm) | ~3.5 |
| M2 | <1.2 |

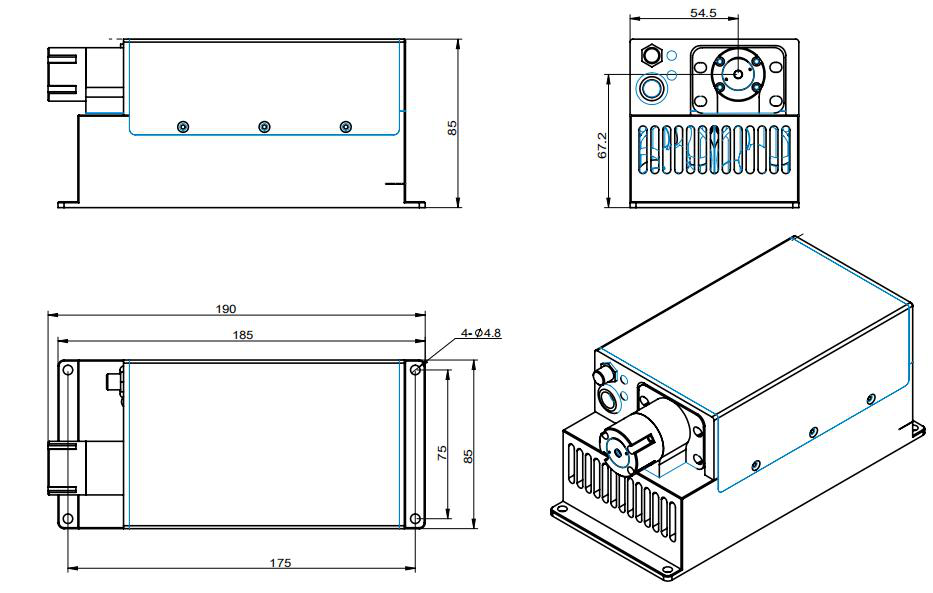

| Beam Height from Base Plate (mm) | 67.2 |
| Warm-up Time (minutes) | <15 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |
| Operating Voltage (VDC) | 12 V/12.5 A |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # Mini-E-PA-1064
Please request a quotation for a real price and lead time.
