Mini-E-PC-1064 1064 nm Miniature LD Pumped All-Solid-State Passively Q-Switched Laser
$1,000,000.00
Description: Miniature all solid state passively Q-switched laser at 1064 nm with high peak power and short pulse duration.
Applications: marking, micro-machining, scientific research
Model #: Mini-E-PC-1064
| Wavelength (nm) | 1064±1 |
| Operating Mode | Passively |
| Average Power (mW) | ≥150 |
| Single Pulse Energy (µJ) | >50 |
| Rep. Rate (kHz) | Fixed 2.5 |
| EXT TRIG | 1-5 kHz by external trigger with stable pulse energy, pulse duration and pulse period |
| Pulse Duration (ns) | 6-10 |
| Peak Power (kW) | ~5 |
| Power Stability (rms, 4 hours ± 3°C) | <3%, <2%, <1% |
| Transverse Mode | TEM00 |
| Beam Divergence, Full Angle (mrad) | <4.5 |
| Beam Diameter at the Aperture (mm) | <1 |
| M2 | <1.2 |

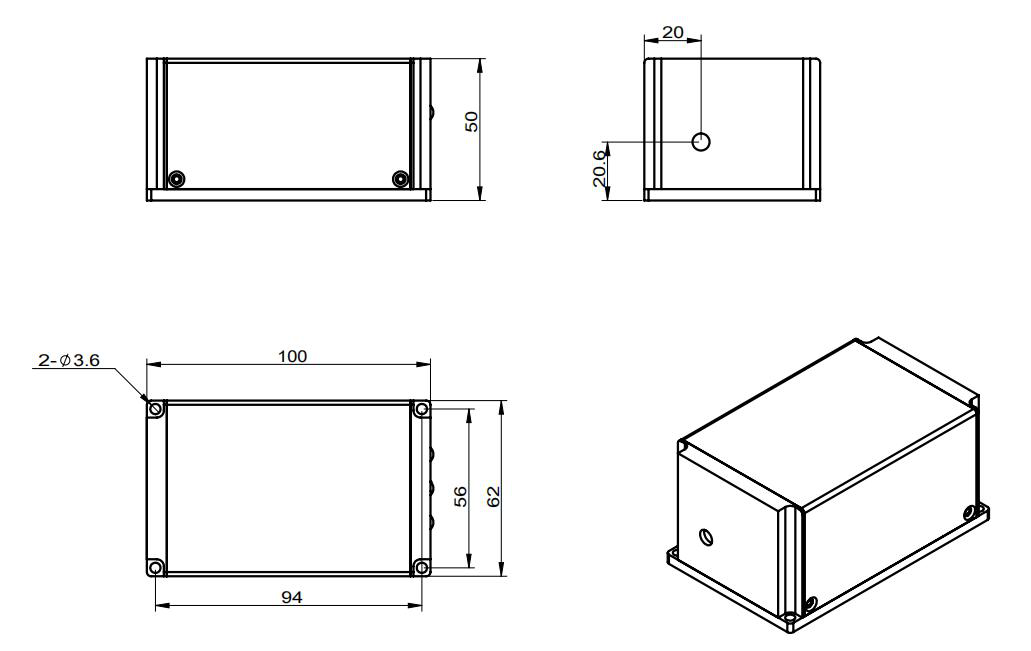

| Beam Height from Base Plate (mm) | 20.6 |
| Warm-up Time (minutes) | <15 |
| Cooled Method | Conduction |
| Operating Temperature (℃) | 10-35 / -20 to 50 |
| Operating Voltage (VDC) | 5 V |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # Mini-E-PC-1064
Please request a quotation for a real price and lead time.
