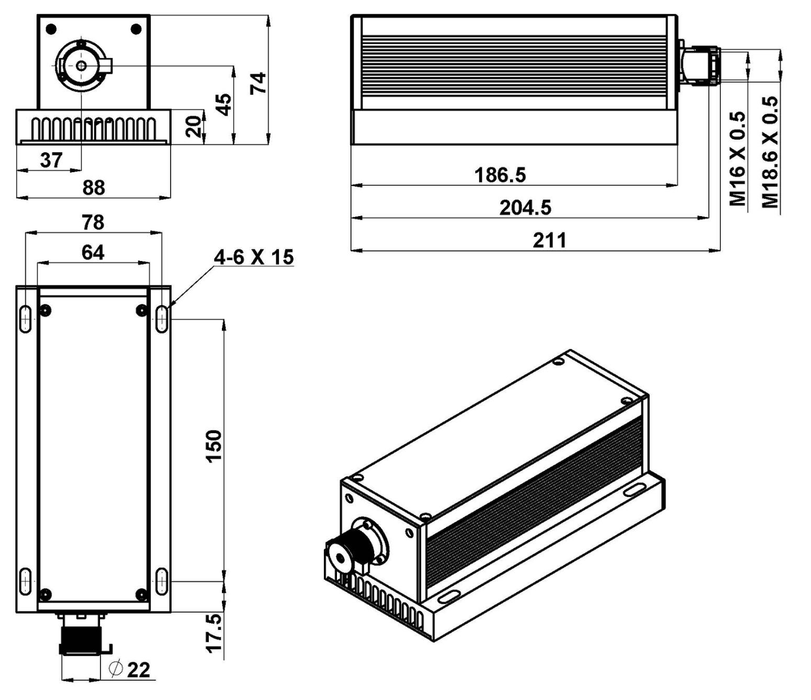

MLL-F-515 515 nm Low Noise LD Pumped All-Solid-State Green Laser
$1,000,000.00
Description: All solid state low noise green laser features of ultra compact, easy operating, high power and stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment
Model #: MLL-F-515
| Model | MLL-F-515 |
| Wavelength (nm) | 515±2 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-50 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Spectral Line Width (nm) | <0.1 |
| Transverse Mode | TEM00 |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1% |
| M² | <1.2 |
| Beam Diameter at the Aperture (1/e², mm) | <3.0 |
| Beam Divergence (mrad) | <2.0 |
| Polarization Ratio | >100:1, Horizontal (Vertical optional) |
| Warm-Up Time (minutes) | <5 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Beam Height from Base Plate (mm) | 45 |
| Operating Temperature (℃) | 10-35 |

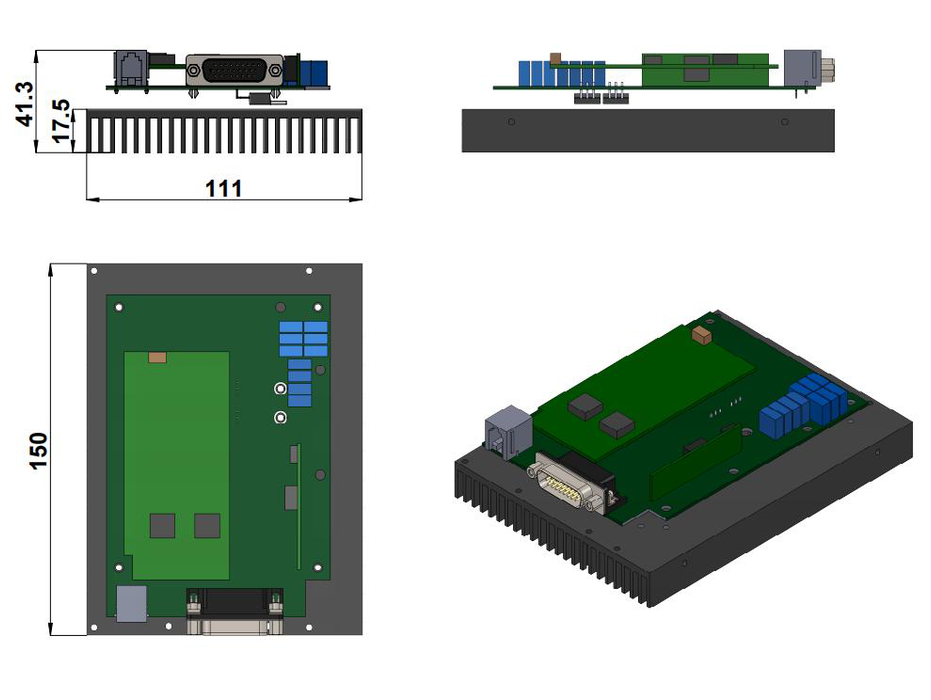

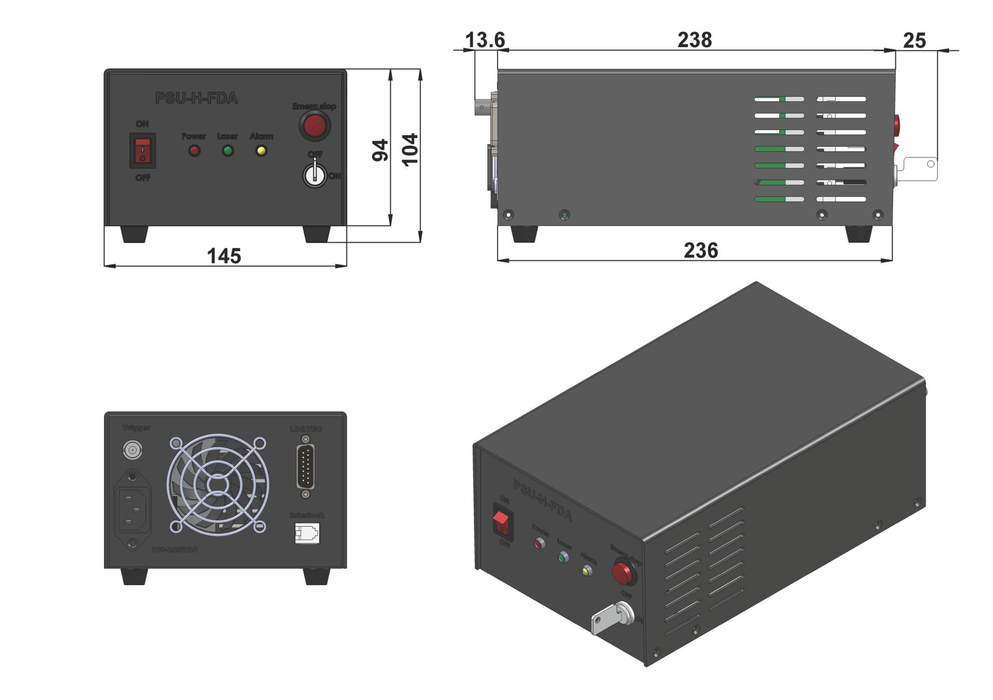

| Power Supply (100-240VAC) | PSU-H-FDA/PSU-H-LED/PSU-SR |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-F-515
Please request a quotation for a real price and lead time.
