MLL-FN-589 589 nm Low Noise Yellow Laser
$1,000,000.00
Description: Low noise yellow laser at 589nm is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, and scientific research etc.
Applications: measurement, spectrum analysis, scientific research
Model #: MLL-FN-589
| Wavelength (nm) | 589±1 |
| Operating Mode | CW |
| Output Power (mW) | >200, … , 300 |
| Power Stability (rms, over 4 hours) | <0.5% (Optional), <1%, <2%, <3% |
| Transverse Mode | TEM00 |
| Spectral Linewidth (nm) | <0.2 |
| Noise of Amplitude (rms, 1Hz~20MHz) | <0.5%, <1% |
| M² Factor | <1.2 |
| Beam Diameter at Aperture (1/e², mm) | <1.5 |
| Beam Divergence, Full Angle (mrad) | <1.2 |
| Polarization Ratio | >100:1, Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <10 |
| Pointing Stability After Warm-up (mrad) | <0.05 |

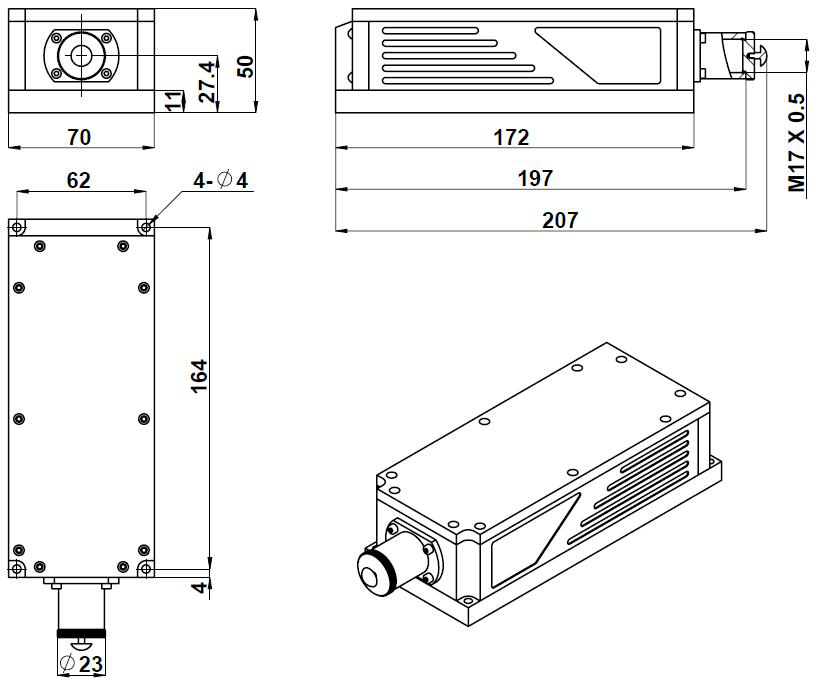

| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 15~35 |
| Power Supply (90-264VAC) | PSU-H-FDA |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-FN-589
Please request a quotation for a real price and lead time.
