MLL-H-946 946 nm Low Noise Infrared Laser
Sold out
$1,000,000.00
Description: All solid state low noise infrared laser at 946nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, measurement, optical instrument, optical sensor, communication, spectrum analysis, etc.
Applications: scientific experiment, measurement, optical instrument, optical sensor, communication, spectrum analysis
Model #: MLL-H-946
| Model | MLL-H-946 |
| Wavelength (nm) | 946±1 |
| Operating Mode | CW |
| Output Power (mW) | >400, 450, 500, …, 800 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3%, <5% |
| Transverse Mode | Near TEM00 |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1% |
| Warm-Up Time (minutes) | <10 |
| M² Factor | <2.0 |
| Beam Divergence, Full Angle (mrad) | <2.0 |
| Beam Diameter at the Aperture (mm) | ~3.0 |
| Beam Height from Base Plate (mm) | 29 |
| Pointing Stability After Warm-Up (mrad) | <0.05 |
| Operating Temperature (℃) | 10~35 |

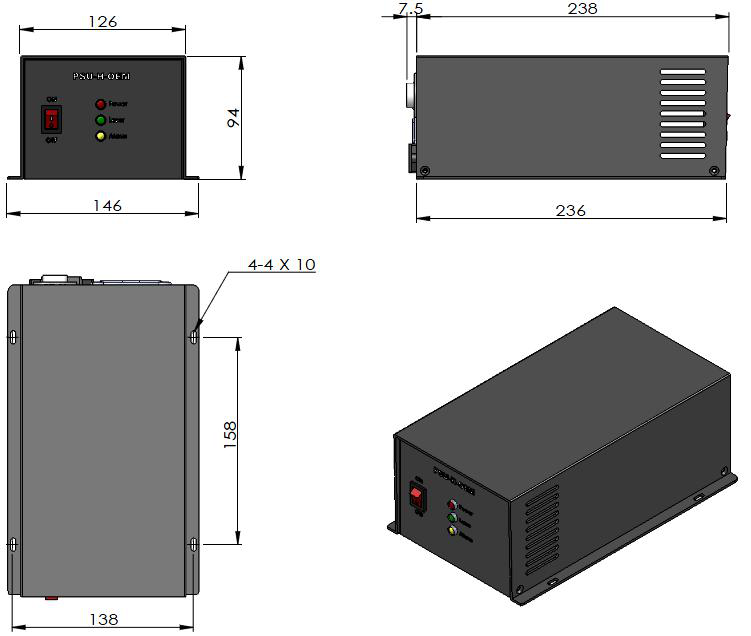

| Power Supply (90-264VAC) | PSU-H-FDA/PSU-H-OEM |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-H-946
Please request a quotation for a real price and lead time.
