MLL-III-785-Lock 785 nm Frequency Stabilized Low Noise Diode Laser
$1,000,000.00
Description: Frequency stabilized low noise infrared diode laser at 785nm, used in spectroscopy, measurement, communication, spectrum analysis.
Applications: spectroscopy, measurement, communication, spectrum analysis
Model #: MLL-III-785-Lock
| Model | MLL-III-785-Lock |
| Central Wavelength (nm) | 785±0.6 |
| Spectral Line Width (nm) | <0.2, <0.1, <0.06 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-600 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Multimode |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1%, <0.5% |
| Beam Diameter at the Aperture (mm) | ~10×1 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Warm-Up Time (minutes) | <5 |
| Cooled Method | Conduction |
| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (℃) | 10-35 |

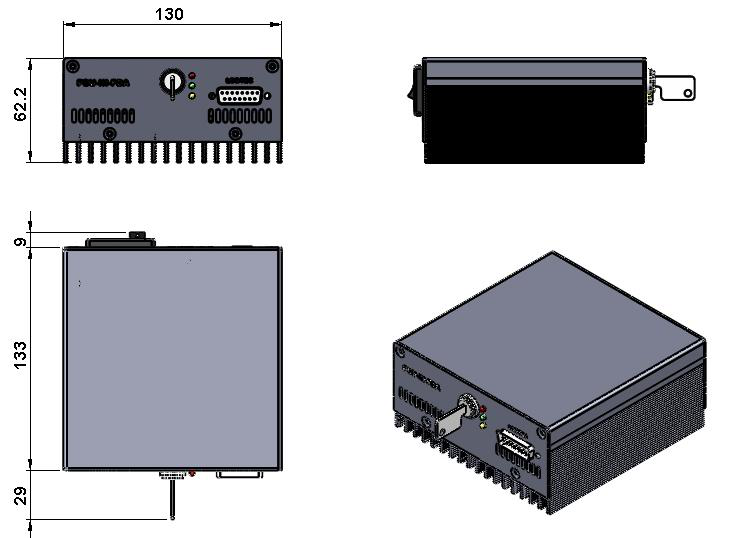

| Power Supply (100-240VAC) | PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-III-785-Lock
Please request a quotation for a real price and lead time.
