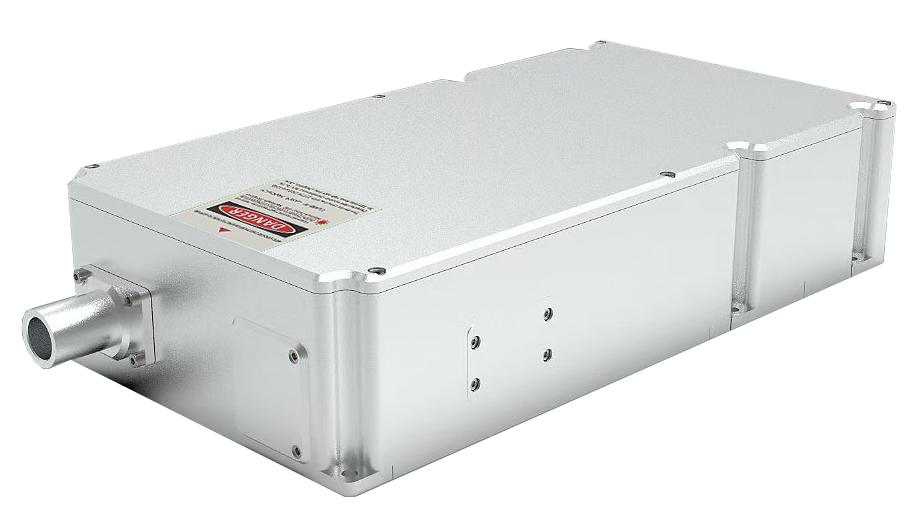

MLL-K-1064-OEM 1064 nm LD Pumped All-Solid-State Low Noise Infrared Laser (OEM)
$1,000,000.00
Description: All solid state low noise infrared laser at 1064 nm featuring ultra compact design, long lifetime and ease of operation.
Applications: scientific experiments, optical instrumentation, optical sensing, measurement, communication, and spectral analysis
Model #: MLL-K-1064-OEM
| Model | MLL-K-1064-OEM |
| Wavelength (nm) | 1064±1 |
| Operating Mode | CW |
| Output Power (W) | 20-40 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, (<0.5% optional) |
| Transverse Mode | TEM00 |
| Spectral Linewidth (nm) | <0.1 |
| Noise of Amplitude (rms, 20 Hz-20 MHz) | <0.5% |
| M2 | <1.2 |
| Beam Divergence, Full Angle (mrad) | ~1 |
| Beam Diameter at the Aperture (1/e2, mm) | ~2 |
| Warm-up Time (minutes) | <10 |
| Pointing Stability (μrad, over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (μrad/°C) | <20 |
| Polarization Ratio | >50:1 (>100:1 optional), Horizontal (Vertical optional) |
| Beam Height from Base Plate (mm) | 72.5 |
| Cooled Method | Water cooled |
| Operating Temperature (°C) | 10-35 |
| Power Supply | DRIVER |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-K-1064-OEM
Please request a quotation for a real price and lead time.
