MLL-K-457-SM 457 nm Single-Mode Fiber Output Laser
$1,000,000.00
Description: Specifically designed for single-mode fiber (including PM) coupling with high power stability and long term stability.
Applications: fiber coupled laser light sources, scientific experiments
Model #: MLL-K-457-SM
| Model | MLL-K-457-SM |
| Wavelength (nm) | 457±1 |
| Operating Mode | CW |
| Output Power (W)¹ | 1-2 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, (<1% optional) |
| Transverse Mode | TEM00 (single mode fiber output) |
| M² | <1.1 |
| Polarization (optional) | >50:1 after PM fiber |
| Fiber Core Diameter | 3.5µm, 0.10 NA |
| Fiber Connector | FC/APC |
| Fiber Length² | 1m |
| Fiber Jacket | PVC, Metal optional |
| Warm-Up Time (minutes) | <10 |

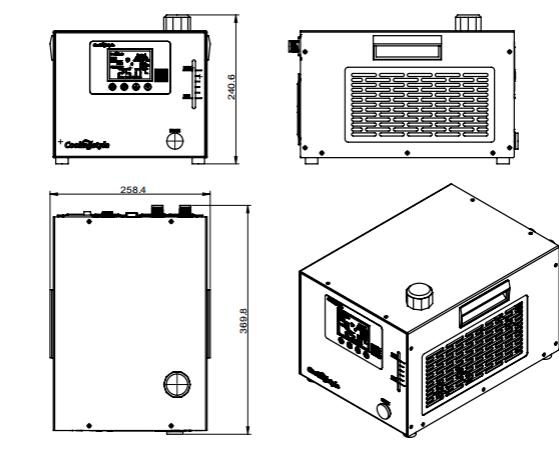

| Cooled Method | Water cooled |
| Operating Temperature (℃) | 10-30 |

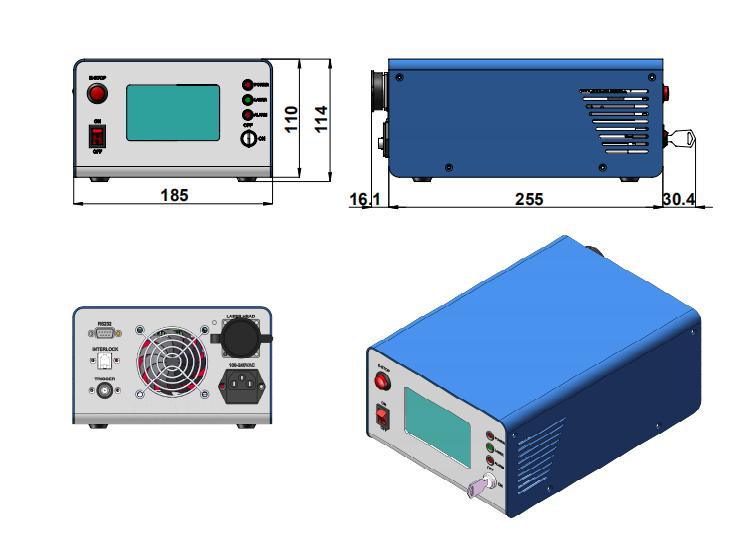

| Power Supply (100-240VAC) | PSU-W-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-K-457-SM
Please request a quotation for a real price and lead time.
