MLL-S-561-AOM 561 nm High Frequency Modulated All-Solid-State Laser
$1,000,000.00
Description: The modulation frequency of high frequency modulation laser system is up to 1MHz. It can be used in the field like laser graphic processing, laser digital communications, etc. It has the feature of high extinction ratio, coding easily, convenient use.
Applications: laser graphic processing, laser digital communications
Model #: MLL-S-561-AOM
| Model | MLL-S-561-AOM |
| Model | MLL-S-561-AOM |
| Wavelength (nm) | 561±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-40 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1% |
| Transverse Mode | TEM00 (single mode fiber output) |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1% (<0.5%, 0.25% optional) |
| M² | <1.2 |
| Fiber Connector | FC/APC |
| Fiber Jacket | PVC (black) |
| Fiber Length² | 1m |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-35 |
| Modulation Option | DC-1 MHz; TTL or Analog optional |

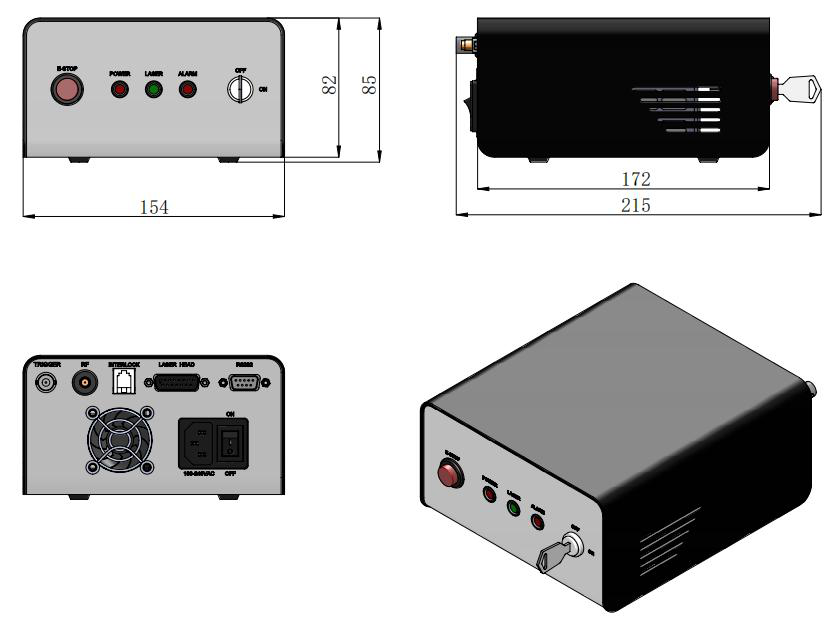

| Power Supply (100-240VAC) | PSU-A-F-AOM |

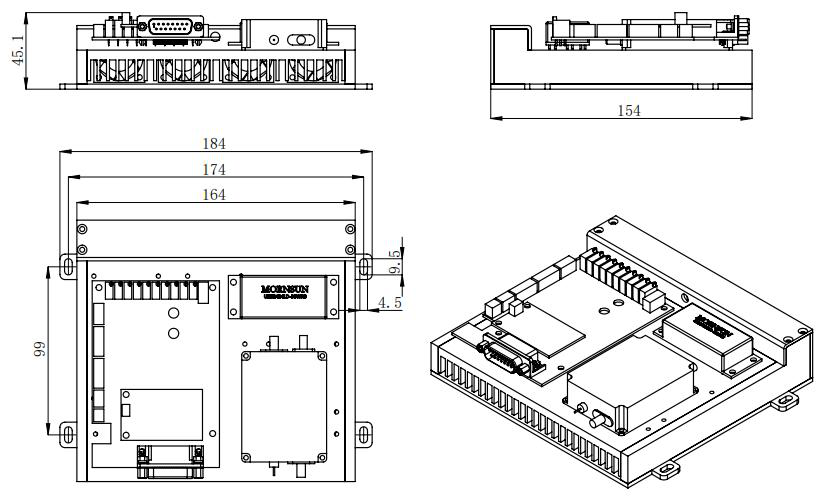

| Power Supply (VDC) | PSU-A-F-AOM-OEM (24V/2A) |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-S-561-AOM
Please request a quotation for a real price and lead time.
