MLL-U-946-SU 946 nm Low Noise Infrared Laser
$1,000,000.00
Description: The all-solid-state, low-noise infrared laser features an ultra-compact design, a long lifetime, and easy operation. It is widely used in scientific experiments, optical sensing, measurement, instrumentation, communication, spectral analysis, and more.
Applications: scientific experiments, optical instrumentation, optical sensing, measurement, communication, spectral analysis
Model #: MLL-U-946-SU
| Model | MLL-U-946-SU |
| Wavelength (nm) | 946±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-150 / 150-300 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% / <3%, <2% |
| Spectral Line Width (nm) | <1.0, <0.1, (<0.006 optional @1-150) |
| Transverse Mode | TEM00 |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1% |
| M² | <1.5 |
| Beam Diameter at the Aperture (1/e², mm) | ~1.5 |
| Beam Divergence (mrad) | <1.5 |
| Polarization Ratio | >100:1, Horizontal (Vertical optional) |
| Warm-Up Time (minutes) | <5 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10-35 |

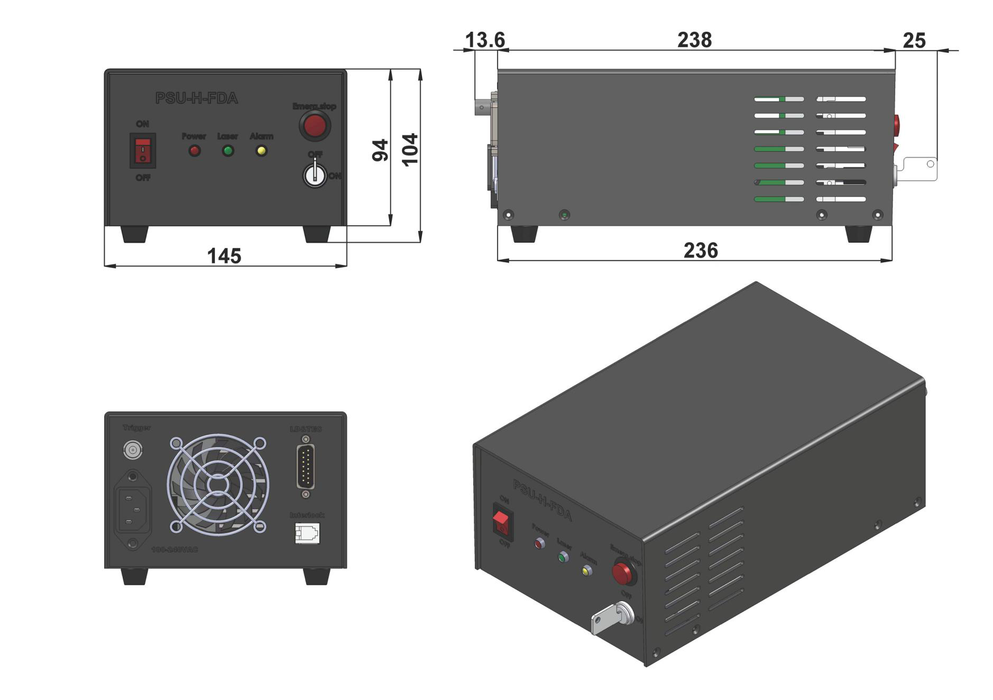

| Power Supply (100-240VAC) | PSU-H-FDA |
| Power Supply (12VDC) | PSU-SR-OEM (12V/25A) |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-U-946-SU
Please request a quotation for a real price and lead time.
