Mode Field Adaptor
Mode Field Adaptor

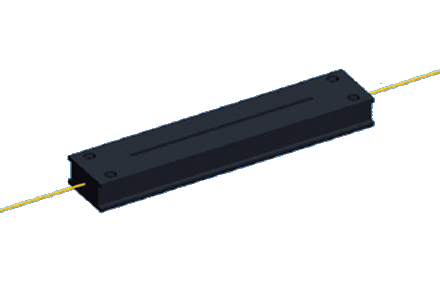

The Mode Field Adaptor transfers the signal between fibers of different mode field diameters while preserving the mode content. It covers 1030-1080 nm and 1530-1580 nm, handles operating power from 5 W to 50 W, and offers typical signal insertion loss of 0.1 dB with 18 dB minimum polarization extinction ratio and 45 dB minimum return loss. The input and output fibers, direction, power, package and length are made to order; the datasheet lists the complete specifications, the general configuration table and the ordering information.
Key Features
- High Power Transfer Efficiency
- Preservation of Mode Content
- Wavelength Insensitive
- High Power Handling
Applications
- Fiber Lasers
- Fiber Laser Seed Amplifiers
- Fiber Laser Power Amplifiers
- Industrial, Telecom & Research
Data Sheet: Mode Field Adaptor (PDF)
Configuration, splitting ratio and packaging are built to order - send us your specification for a quotation.
