Motorized Variable Optical Delay Line with Driver at 1310, 1550 nm MDLD, 500ps Delay
Motorized Variable Optical Delay Line with Driver at 1310, 1550 nm MDLD, 500ps Delay

Motorized Variable Optical Delay Line with Driver at 1310, 1550 nm MDLD, 500ps Delay

$3,875.00

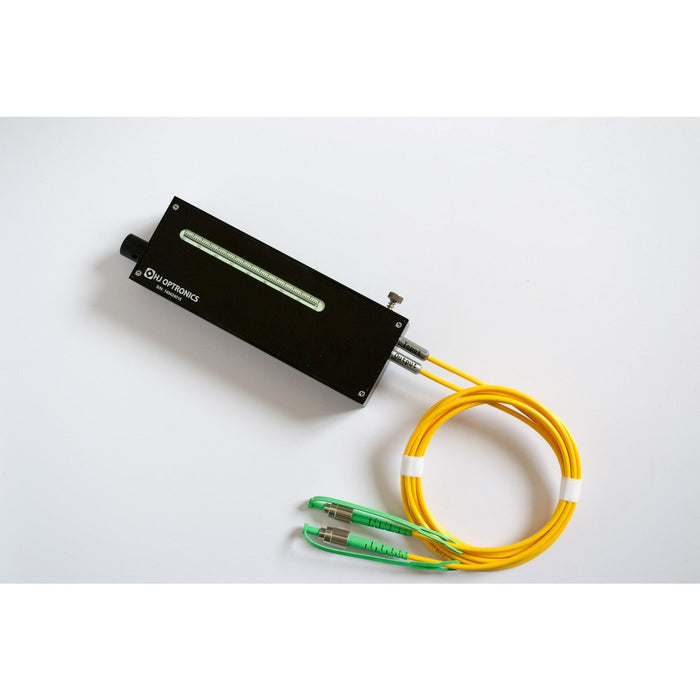

The micro optics-based motorized variable optical delay line with a driver (MDLD) provides precision optical path length adjustment of up to 500 ps. Driven by a stepping motor, the MDLD has a delay resolution of about 0.76 um (2.5 fs). In addition, its advanced motion design guarantees longevity for long-term continuous operation. Low insertion loss and high reliability make this device ideal for integration in optical coherence tomography (OCT) systems, network equipment, and test instruments for precision optical path length control or timing alignment.

Model #: MDLD-1550-500-N-N-B-1-M

Please refer to the Data Sheet for detailed specifications

  If you need a different model number, please feel free to ask for a quotation.

  • Precise Optical Path Length Variation
  • Wide Optical Path Length Variation Range
  • High Extinction Ratio
  • Motorized delay adjustment
  • Epoxy Free in Optical Path
  • Low Insertion Loss
  • RoHS Compliant
  • Model # MDLD-1550-500-N-N-B-1-M
