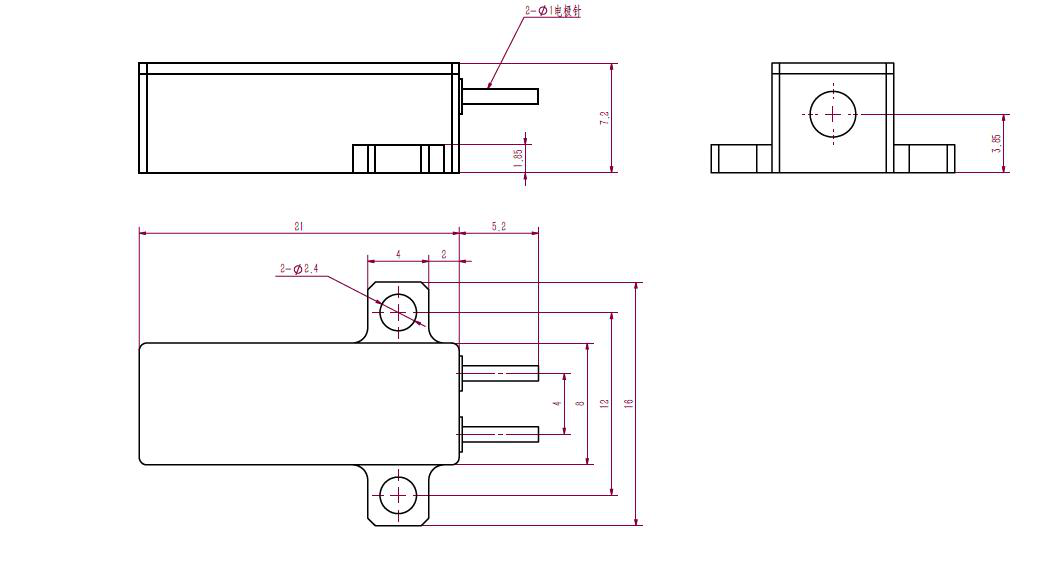

MPL-E-1535 1535 nm Eye-Safe Q-Switched Laser Module
$1,000,000.00
Description: The 1535 nm eye-safe laser is a core component for eye-safe rangefinders. As an independently developed and localized device, it offers high reliability and cost-effectiveness.
Applications: eye-safe rangefinders, laser ranging, lidar
Model #: MPL-E-1535
| Part Number | MPL-E100-1535 / MPL-E200-1535 / MPL-E300-1535 / MPL-E400-1535 / MPL-E40-1535 |
| Wavelength (nm) | 1535, 1535±2 |
| Operating Mode | Passively |
| Average Power (mW) | 0.1-1 / 0.2-2 / 0.3-3 / 0.4-4 / 40 |
| Single Pulse Energy (µJ) | 100 / 200 / 300 / 400 / 40 |
| Pulse Duration (ns) | 3-5 / 3-6 / 3-5 |
| Peak Power (kW) | 25 / 50 / 70 / 80 / 10 |
| Rep. Rate (Hz) | 1-10 (MPL-E100/200/300/400-1535) / 1000 (MPL-E40-1535) |
| Energy Stability (rms, 4 hours ± 3°C) | <5% |
| Beam Diameter at the Aperture (mm) | ≤12 (MPL-E100/200/300/40-1535) / ≤15 (MPL-E400-1535) |
| Beam Divergence, Full Angle (mrad) | 3.85 |
| Operating Temperature (°C) | -40 to 65 (MPL-E100/200/300-1535) / -40 to 55 (MPL-E400/40-1535) |
| Operating Voltage (V) | <2 |
| Operating Current (A) | 8±1 (MPL-E100/200/300-1535) / ≤12 (MPL-E400-1535) / ≤4 (MPL-E40-1535) |
| Expected Lifetime | >10⁷ times irradiate (MPL-E100/200/300/40-1535) / >2×10⁷ times irradiate (MPL-E400-1535) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MPL-E-1535
Please request a quotation for a real price and lead time.
