266 nm LD Pumped All-Solid-Sate Passively Q-switched Pulsed Laser MPL-FN-266
$1,000,000.00
Description: All solid state passively laser is made features of ultra compact, long lifetime, cost-effectiveness and easy operating.
Applications: curing, micro-electronics, CD carving, laser medical treatment, scientific experiment
Model #: MPL-FN-266-XX-YY
| Model | MPL-FN-266 |
| Wavelength | 266 nm |
| Average Power | 1-8 / 1-15 mW |
| Repetition Rate | 10 Hz-1 kHz / 1-3 kHz |
| Power Stability | <5%, <3%, <2% |
| Warm-Up Time | < 5 min. |
| Operation Mode | Pulsed |
| Pulse Width | ~0.6 / ~0.8 ns |
| Single Pulse Energy | 1-8 / 1-5 µJ |
| Peak Power | 1.7-13.3 / 1.3-6.3 kW |
| Beam Diameter at the Aperture | ~1.5 mm |
| Beam Divergence, Full Angle | ~6.0 mrad |
| Transverse Mode | Near TEM00 |
| M2 | <2.0 |
| Beam Height from Base Plate | 27.4 mm |
| Operating Temperature | 10-35 ℃ |

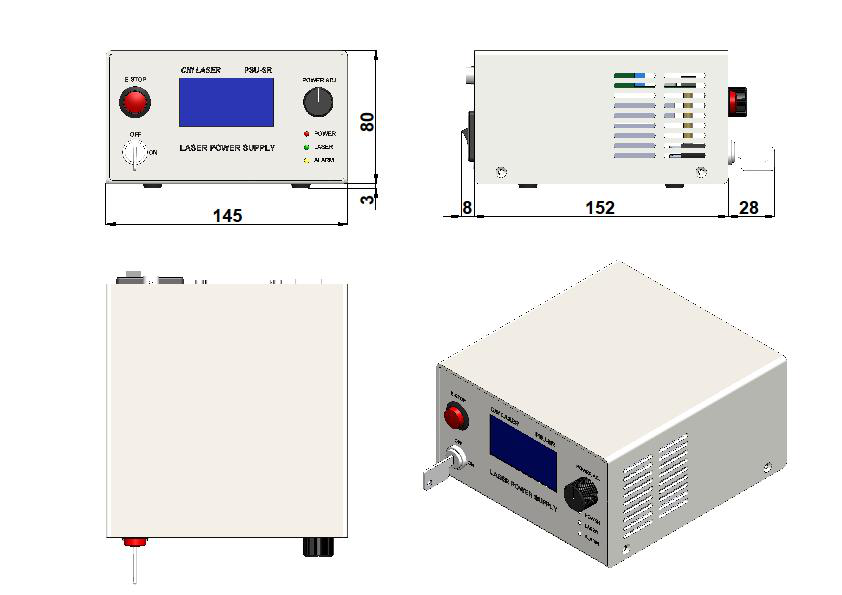

| Power Supply (90 - 264 VAC) | PSU-SR |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MPL-FN-266
Please request a quotation for a real price and lead time.
