MRL-DP-747-B 747 nm LD Pumped All-Solid-State Red Laser
$1,000,000.00
Description: All solid-state CW mode laser is made features of ultra compact, easy operating, high power and stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment
Model #: MRL-DP-747-B
| Model | MRL-DP-747-B |
| Wavelength (nm) | 747±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1000-2000 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Transverse Mode | Near TEM00 (TEM00 optional) |
| Beam Diameter at the Aperture (1/e², mm) | <3.0 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Polarization Ratio | >100:1, Horizontal (Vertical optional) |
| Warm-Up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 50 |
| Cooled Method | Water cooled |
| Operating Temperature (℃) | 10-35 |

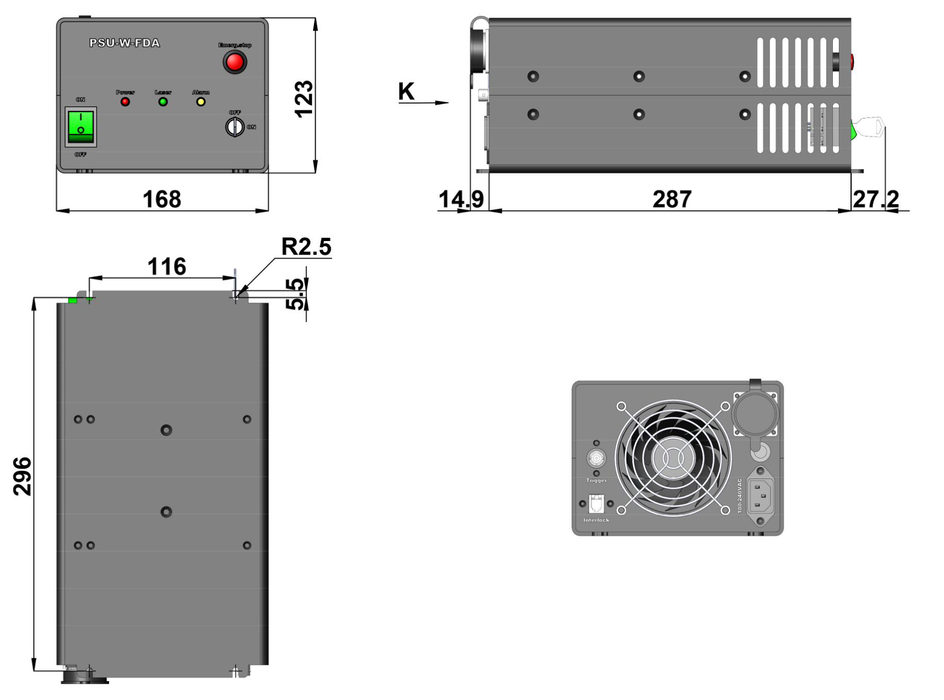

| Power Supply (100-240VAC) | PSU-H-FDA/PSU-H-LED/PSU-SR |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-DP-747-B
Please request a quotation for a real price and lead time.
