MRL-FN-604 604 nm LD Pumped All-Solid-State Red Laser
$1,000,000.00
Description: Red laser at 604nm is made features of TEM00, long lifetime and easy operating, which is widely used in measurement, spectrum analysis as the substitute for He-Ne lasers.
Applications: measurement, spectrum analysis (substitute for He-Ne lasers)
Model #: MRL-FN-604
| Wavelength (nm) | 604±3 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 20, … , 100 |
| Power Stability (rms, over 4 hours) | <3%, <5%, <10% |
| Transverse Mode | Near TEM00 |
| Dimensions of Beam at Aperture (mm) | ~1.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Warm-up Time (minutes) | <5 |

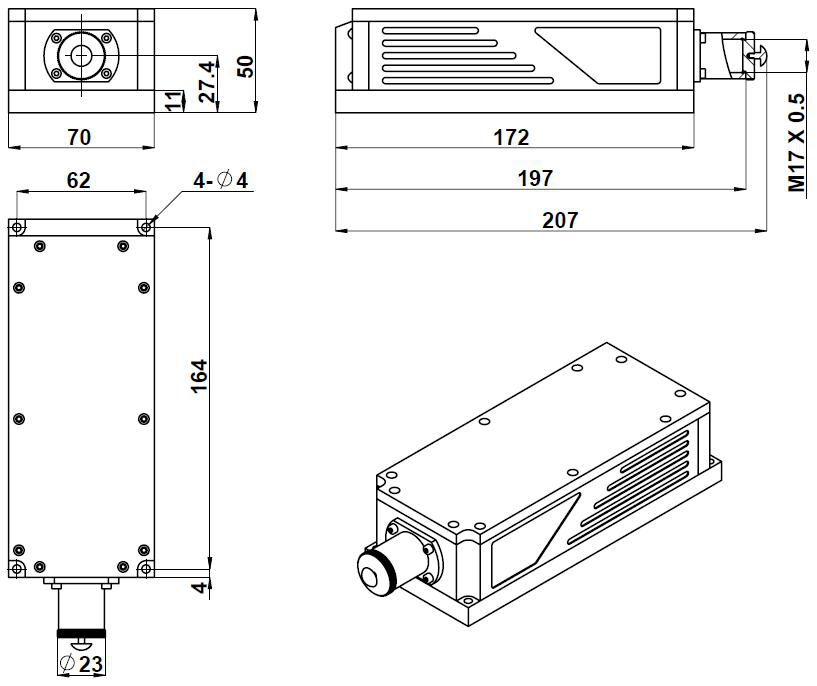

| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10~35 |

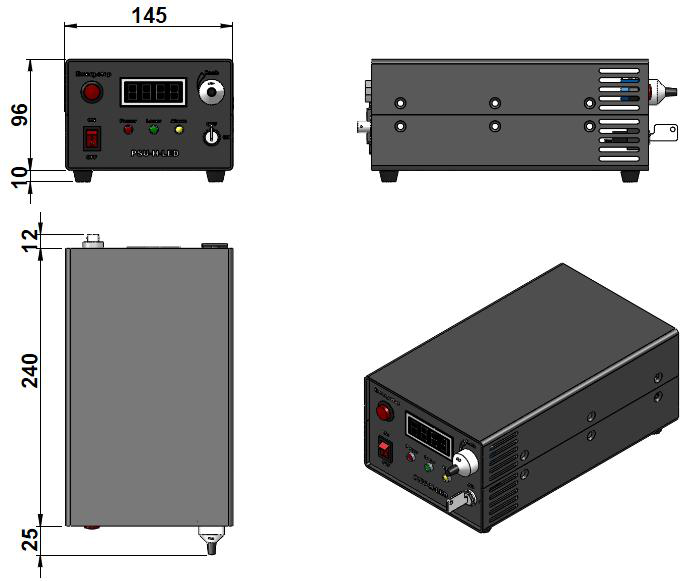

| Power Supply (90-264VAC) | PSU-H-FDA / PSU-H-LED / PSU-SR |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-FN-604
Please request a quotation for a real price and lead time.
