MRL-FN-607 607 nm LD Pumped All-Solid-State Red Laser
$1,000,000.00
Description: DPSS red laser at 607nm is made features of ultra compact, long lifetime and easy operating, which is widely used in measurement, spectrum analysis as the substitute for He-Ne lasers.
Applications: measurement, spectrum analysis (substitute for He-Ne lasers)
Model #: MRL-FN-607
| Wavelength (nm) | 607±3 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 20, … , 200 / >200, … , 400 |
| Power Stability (rms, over 4 hours) | <3%, <5%, <10% / <5%, <10% |
| Transverse Mode | TEM00 |
| M² Factor | <1.2 |
| Beam Diameter at Aperture (1/e², mm) | ~2.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >100:1 Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10~35 |

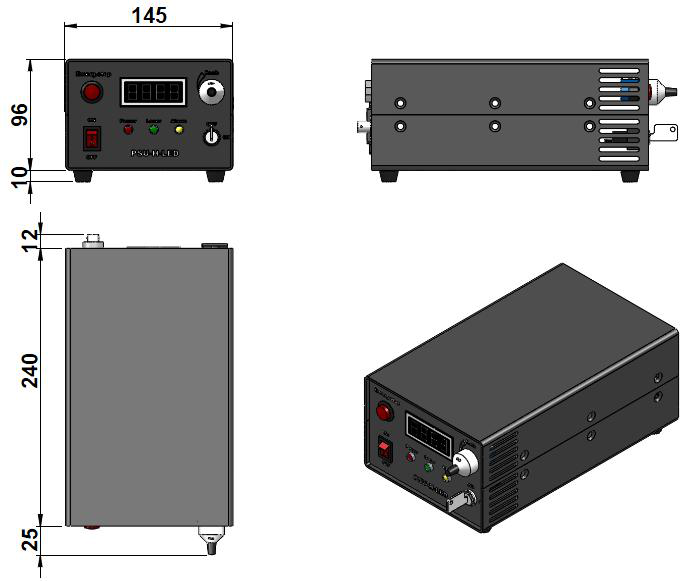

| Power Supply (90-264VAC) | PSU-H-LED / PSU-H-FDA / PSU-SR |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-FN-607
Please request a quotation for a real price and lead time.
