MRL-FN-639 639 nm Red Laser
$1,000,000.00
Description: All solid state 639nm red laser is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, and laser lighting show etc.
Applications: measurement, spectrum analysis, and laser lighting show
Model #: MRL-FN-639
| Central Wavelength (nm) | 639±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 20 … 400 / >400, … 1000 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% / <2%, <3% |
| Transverse Mode | TEM00 / Near TEM00 |
| M² Factor | <1.2 (<1.1 optional) / <2.0 |
| Beam Diameter at Aperture (1/e², mm) | <1.0 / <1.5 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >100:1 Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <10 |
| Pointing Stability After Warm-up (mrad) | <0.05 |

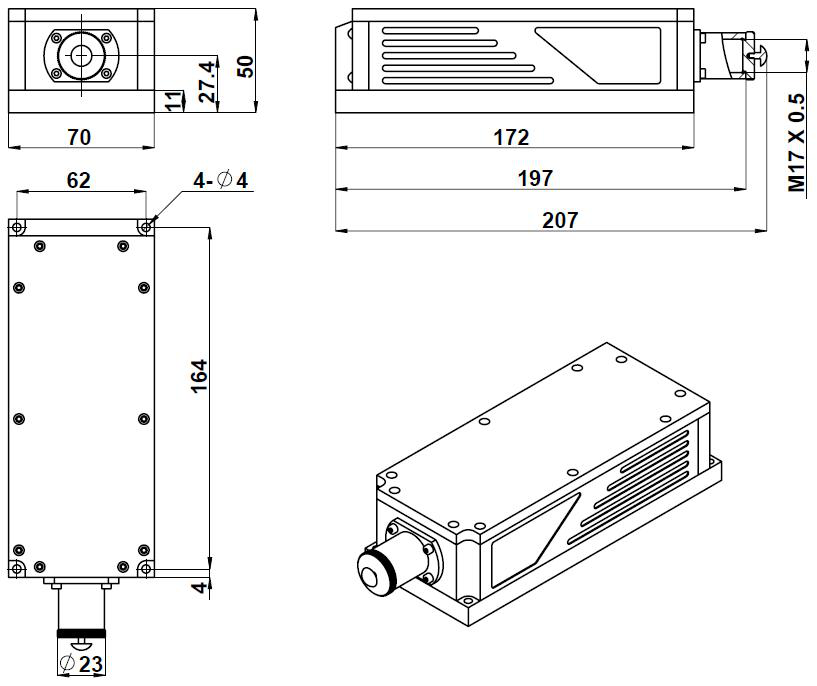

| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10~35 |

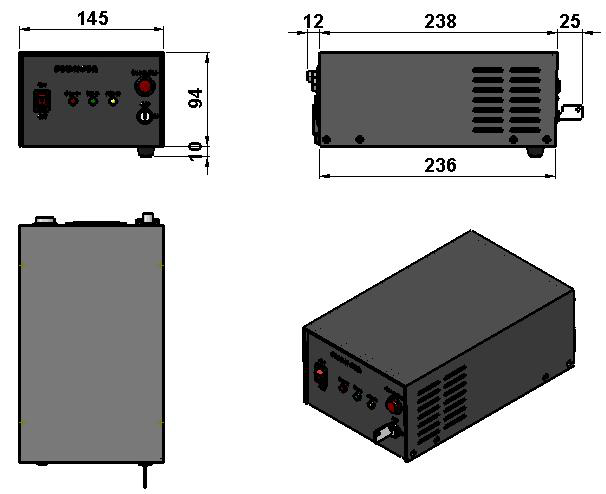

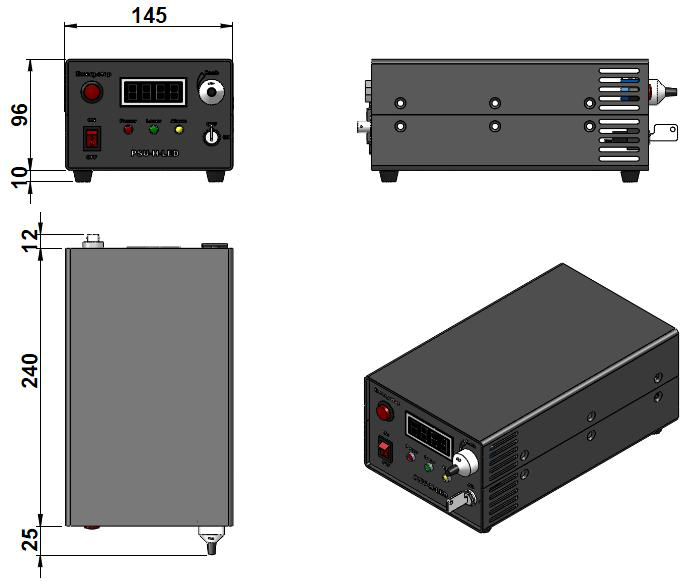

| Power Supply (90-264VAC) | PSU-H-LED / PSU-H-FDA |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-FN-639
Please request a quotation for a real price and lead time.
