MRL-III-637 637 nm Red Diode Laser
$1,000,000.00
Description: Diode red laser at 637nm is made features of round spot, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, laser lighting show, etc.
Applications: measurement, spectrum analysis, laser lighting show
Model #: MRL-III-637
| Wavelength (nm) | 637±5 |
| Output Power (mW) | >1, 10, 20, … , 200 |
| Transverse Mode | Near TEM00 |
| Operating Mode | CW |
| Power Stability (rms, over 4 hours) | <1%, <3%, <5% |
| Warm-up Time (minutes) | <5 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Dimensions of Beam at Aperture (mm) | ~3.0 |

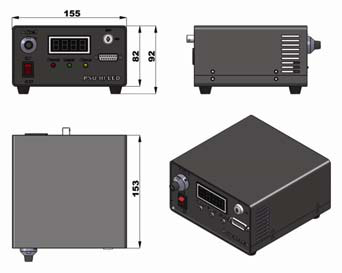

| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (℃) | 10~35 |
| Power Supply (90-264VAC or 5VDC) | PSU-III-FDA |
| Modulation Option | TTL/Analog 1Hz-5kHz, 1Hz-10kHz, 1Hz-30kHz, and TTL on/off |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-III-637
Please request a quotation for a real price and lead time.
