MRL-S-671-SM 671 nm SM Fiber Output Red Laser
$1,000,000.00
Description: All solid state single mode fiber output laser features of ultra compact, easy operating and high stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment
Model #: MRL-S-671-SM
| Model | MRL-S-671-SM |
| Wavelength (nm) | 671±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-50 / 50-100 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Transverse Mode | TEM00 (single mode fiber output) |
| M² | <1.1 |
| Fiber Numerical Aperture | 0.10-0.15 |
| Fiber Type | SM fiber (PM fiber optional) |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1% |
| Fiber Connector | FC/APC |
| Fiber Jacket | PVC (black) |
| Fiber Length² | 1m |
| Polarization (optional) | >50:1 after PM fiber |
| Warm-Up Time (minutes) | <10 |
| Operating Temperature (℃) | 10-35 |

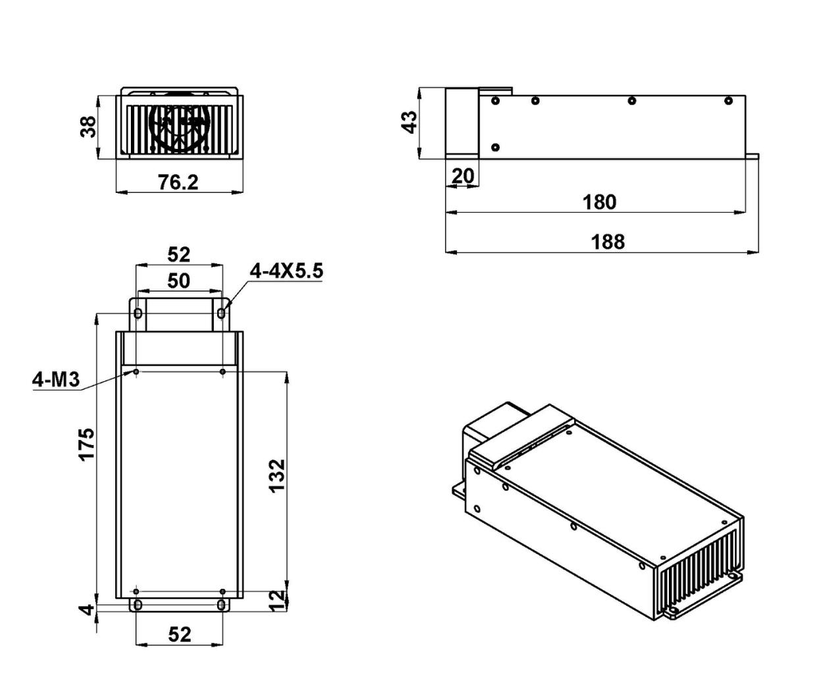

| Power Supply (100-240VAC) | PSU-H-FDA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-S-671-SM
Please request a quotation for a real price and lead time.
