MRL-W-660A 660 nm Red Laser
$1,000,000.00
Description: All solid state 660nm red laser is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, laser lighting show, etc.
Applications: measurement, spectrum analysis, laser lighting show
Model #: MRL-W-660A
| Wavelength (nm) | 660±2 |
| Operating Mode | CW |
| Output Power (mW) | 500-2000 |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3% |
| Transverse Mode | Near TEM00 |
| Beam Divergence, Full Angle (mrad) | <1.1 |
| Beam Diameter at Aperture (1/e², mm) | ~4.5 |
| Warm-up Time (minutes) | <10 |
| Pointing Stability (µrad, over 2 hours after warm-up ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <20 |
| Polarization Ratio | >100:1, Horizontal |
| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10~35 |

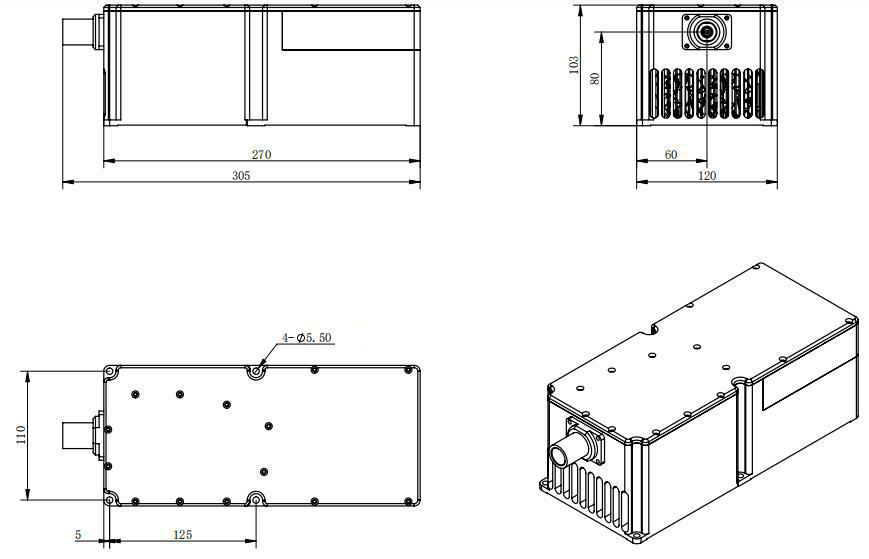

| Power Supply (90-264VAC) | PSU-H-FDA |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-W-660A
Please request a quotation for a real price and lead time.
