MRL-W-758 758 nm LD Pumped All-Solid-State Red Laser
$1,000,000.00
Description: All solid state 758nm red laser is made features of ultra compact, long lifetime and easy operating.
Applications: measurement, spectrum analysis, laser lighting show
Model #: MRL-W-758
| Model | MRL-W-758 |
| Wavelength (nm) | 758±2 |
| Operating Mode | CW |
| Output Power (mW)¹ | 100-4000 |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3% |
| Transverse Mode | TEM00 |
| Warm-Up Time (minutes) | <10 |
| Beam Divergence, Full Angle (mrad) | <3 |
| Beam Diameter at the Aperture (1/e², mm) | <5 |

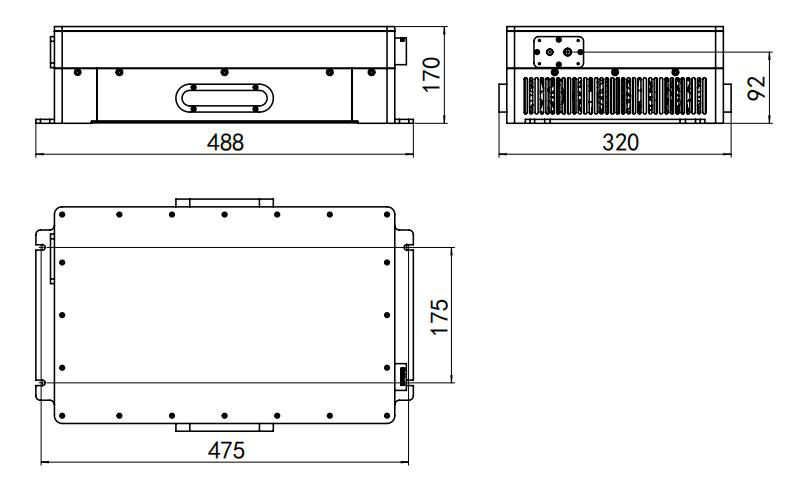

| Beam Height from Base Plate (mm) | 92 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 15-30 |

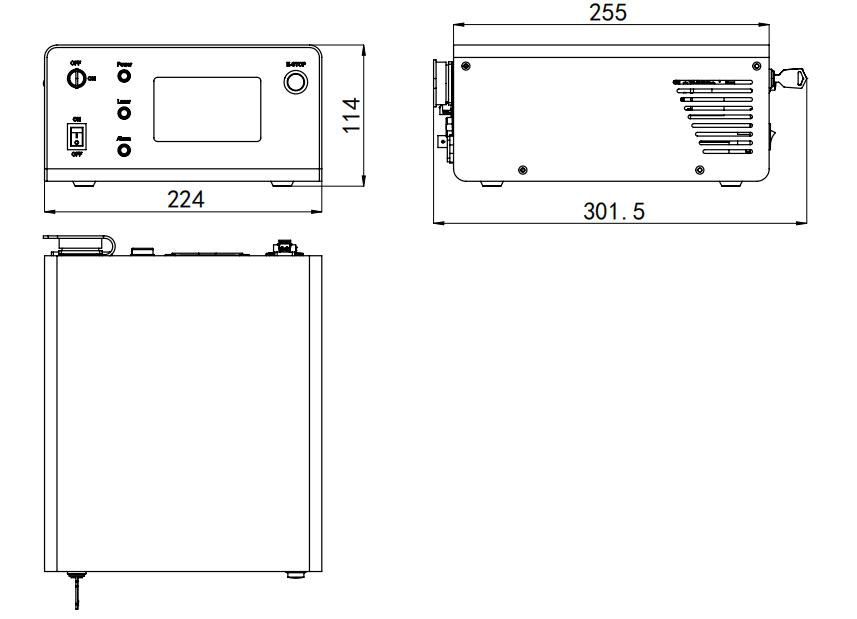

| Power Supply (100-240VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-W-758
Please request a quotation for a real price and lead time.
