MSL-FN-473 473 nm Single Longitudinal Mode Blue Laser
$1,000,000.00
Description: All solid state single longitudinal mode blue laser at 473nm is made features of ultra compact, long lifetime, low cost and easy operating.
Applications: DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, brillouin scattering, physics experiment
Model #: MSL-FN-473
| Model | MSL-FN-473 |
| Wavelength (nm) | 473±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 5, 10, 20, …, 50 / >50, …, 100 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% / <2%, <3%, <5% |
| Transverse Mode | TEM00 |
| Longitudinal Mode | Single |
| Spectral Linewidth (nm) | <0.00001 |
| Coherent Length (m) | >50 |
| Noise of Amplitude (rms, 1Hz-20MHz) | <1%, typical <0.5% |
| M² Factor | <1.2 |
| Beam Diameter at the Aperture (1/e², mm) | <2.5, typical <2.0 |
| Beam Divergence, Full Angle (mrad) | <1.2 |
| Polarization Ratio | >100:1, Vertical±5 degree (Horizontal Optional) |
| Warm-Up Time (minutes) | <10 |
| Pointing Stability After Warm-Up (mrad) | <0.05 |

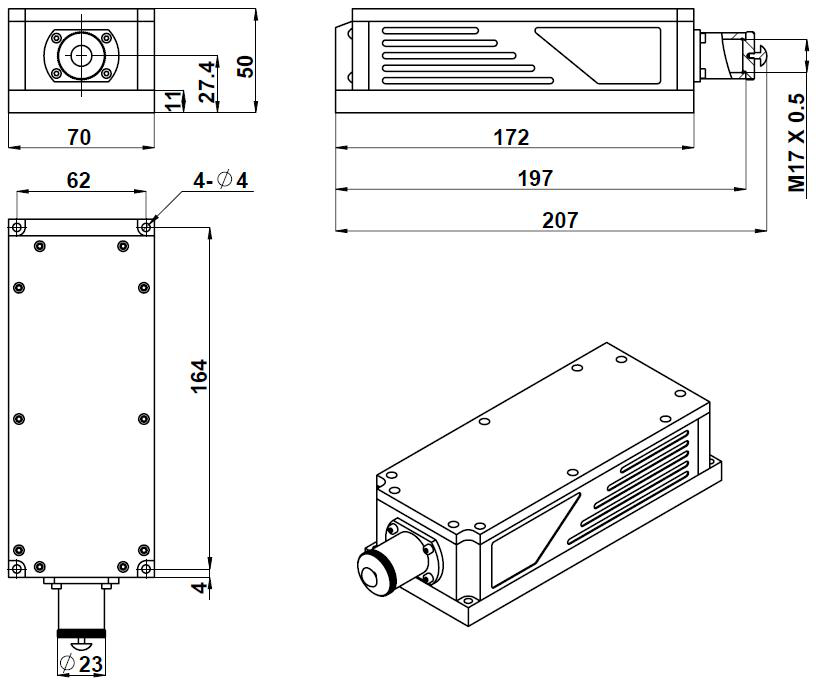

| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 15-35 |
| Power Supply (90-264VAC) | PSU-H-FDA |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MSL-FN-473
Please request a quotation for a real price and lead time.
