MSL-FN-639 639 nm Single Longitudinal Mode Red Laser
$1,000,000.00
Description: All solid state single longitudinal mode red laser at 639nm is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, brillouin scattering, physics experiment, etc.
Applications: DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, brillouin scattering, physics experiment
Model #: MSL-FN-639
| Central Wavelength (nm) | 639±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 5, 10, 20, … , 300 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% |
| Transverse Mode | TEM00 |
| Longitudinal Mode | Single |
| Spectral Linewidth (nm) | <0.00001 |
| Coherent Length (m) | >40 |
| Noise of Amplitude (rms, 1Hz~20MHz) | <1%, typical <0.5% |
| M² Factor | <1.2 (<1.1 optional) |
| Beam Diameter at Aperture (1/e², mm) | <1.5 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >100:1, Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <10 |
| Pointing Stability After Warm-up (µmrad/℃) | 6 |

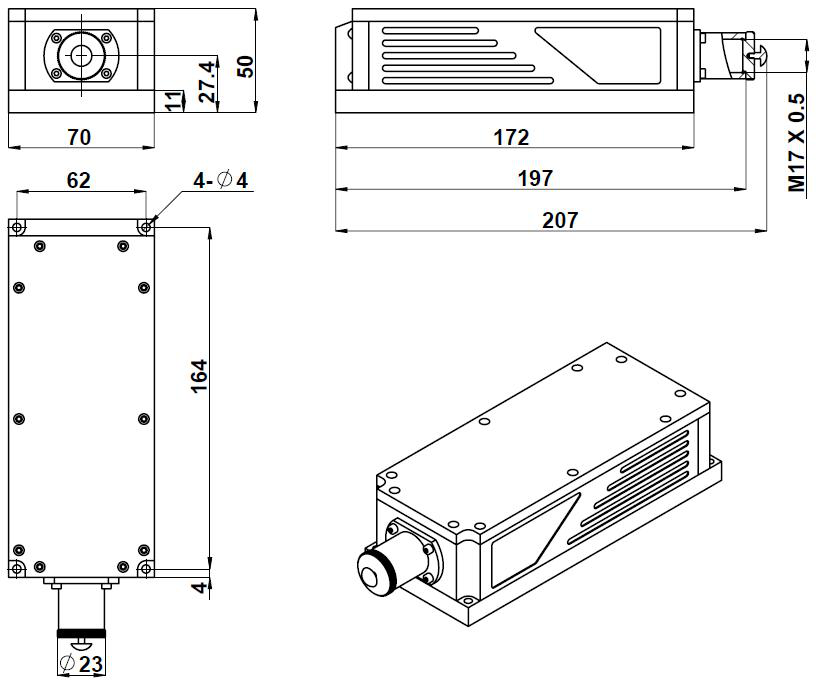

| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 15~35 |

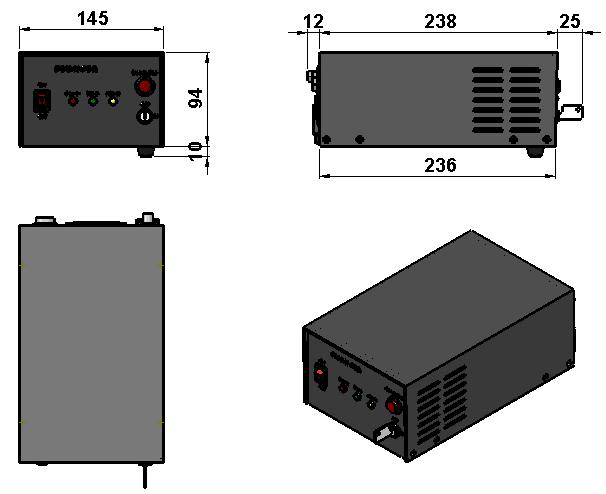

| Power Supply (90-264VAC) | PSU-H-FDA |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MSL-FN-639
Please request a quotation for a real price and lead time.
