MSL-III-633L 633 nm Single Longitudinal Mode Red Diode Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in Raman spectroscopy, speckle interferometry, bio-instrumentation, metrology, sensing, analytical instrumentation.
Applications: Raman spectroscopy, speckle interferometry, bio-instrumentation, metrology, sensing, analytical instrumentation
Model #: MSL-III-633L
| Central Wavelength (nm) | 633±0.5 |
| Operating Mode | CW |
| Output Power (mW) | 1-30 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Near TEM00 |
| Longitudinal Mode | Single |
| Spectral Line Width (MHz) | <100, (<50 optional) |
| Coherent Length (m) | >2 |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1%, <0.5% |
| M² | <1.5 |
| Beam Diameter at Aperture (1/e², mm) | ~1.0 |
| Beam Divergence, Full Angle (mrad) | ~2.0 |
| Polarization Ratio | >50:1, (>100:1 optional), Horizontal±5 degree (Vertical optional) |
| Warm-up Time (minutes) | <5 |

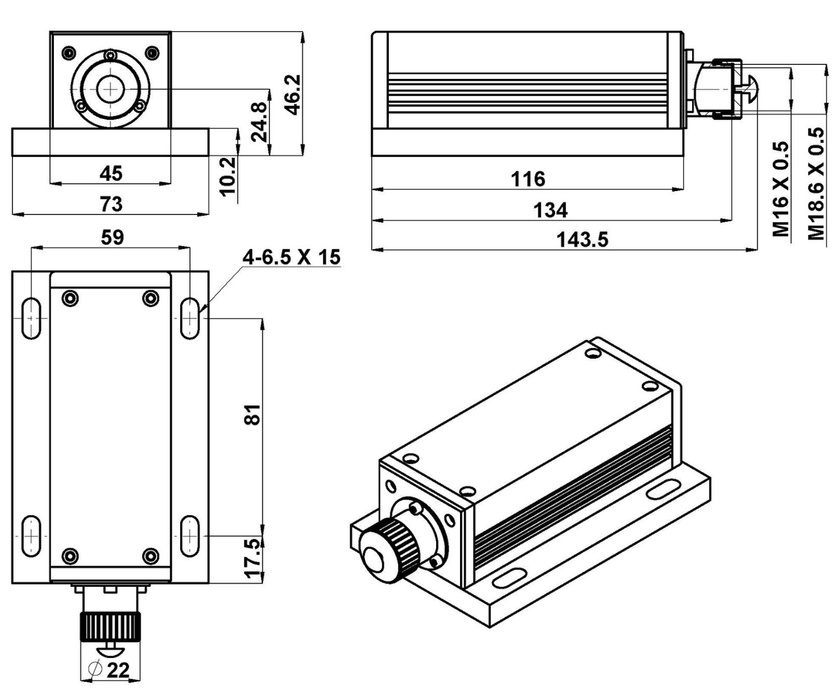

| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (℃) | 10-35 |
| Power Supply (100-240VAC) | PSU-III-FDA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MSL-III-633L
Please request a quotation for a real price and lead time.
