MSL-III-780L 780 nm Single Longitudinal Mode Diode Laser
$1,000,000.00
Description: Single longitudinal mode infrared diode laser at 780nm, used in interferometry, bio-instrumentation, metrology, sensing, analytical instrumentation.
Applications: interferometry, bio-instrumentation, metrology, sensing, analytical instrumentation
Model #: MSL-III-780L
| Model | MSL-III-780L |
| Central Wavelength (nm) | 780±0.5 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-80 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Near TEM00 |
| Longitudinal Mode | Single |
| Spectral Line Width (MHz) | <100, (<50 optional) |
| Coherent Length (m) | >2 |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1%, <0.5% |
| Beam Diameter at the Aperture (1/e², mm) | ~4.0 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Polarization Ratio | >10:1 |
| Warm-Up Time (minutes) | <5 |
| Cooled Method | Conduction |
| Operating Temperature (℃) | 10-35 |

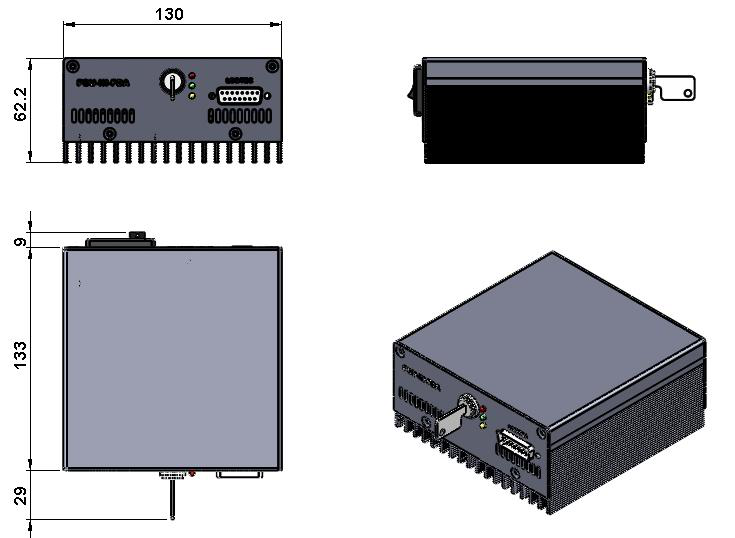

| Power Supply (100-240VAC) | PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MSL-III-780L
Please request a quotation for a real price and lead time.
