MSL-R-1342 1342 nm High Power Single Longitudinal Mode Laser
$1,000,000.00
Description: All-solid-state single-longitudinal-mode laser at 1342 nm featuring ultra-compact design, easy operation, high power and stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instruments, physics experiments
Model #: MSL-R-1342
| Wavelength (nm) | 1342±1 |
| Output Power (mW) | 500-5000 |
| Power Stability (rms, 4 hours ± 3°C) | <3%, <2%, <1% |
| Transverse Mode | TEM00 |
| Longitudinal Mode | Single |
| Operating Mode | CW |
| Noise of Amplitude (rms, 20 Hz-20 MHz) | <0.5% |
| M2 | <1.3 |
| Beam Diameter at the Aperture (1/e2, mm) | ~1.5 |
| Beam Divergence (mrad) | <1.5 |
| Polarization Ratio | >100:1, Vertical (Horizontal optional) |
| Spectral Line Width (nm) | <5 MHz |
| Pointing Stability (µrad) (over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <8 |

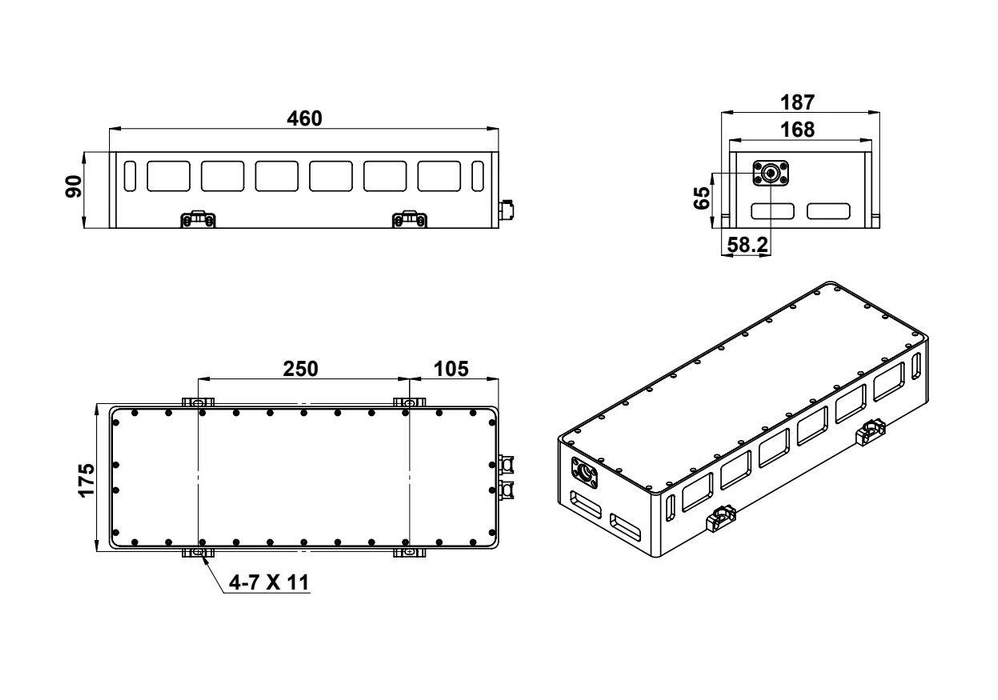

| Beam Height from Base Plate (mm) | 58 |
| Coherent Length (m) | >50 |
| Warm-up Time (minutes) | <15 |
| Cooled Method (water cooled) | WCH-580 |
| Operating Temperature (°C) | 20-30 |
| Power Supply (90-264 VAC) | PSU-W-FDA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MSL-R-1342
Please request a quotation for a real price and lead time.
