MSL-T-729 729 nm Single Longitudinal Mode Red Laser
$1,000,000.00
Description: All solid state single longitudinal mode laser is made features of ultra compact, which is widely used in quantum computing, cell sorting, laser cooling of potassium atoms, spectrum analysis, surface-enhanced Raman scattering, cold-atom physics.
Applications: quantum computing, cell sorting, laser cooling of potassium atoms, spectrum analysis, surface-enhanced Raman scattering, cold-atom physics
Model #: MSL-T-729
| Model | MSL-T-729 |
| Wavelength (nm) | 729±1 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-300 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Transverse Mode | TEM00 |
| Longitudinal Mode | Single |
| Spectral Line Width (nm) | <0.000005 |
| Coherent Length (m) | >30 |
| M² | <1.2 |
| Beam Diameter at the Aperture (1/e², mm) | <1.5 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Polarization Ratio | >100:1, Vertical (Horizontal optional) |
| Warm-Up Time (minutes) | <5 |
| Pointing Stability (µrad, over 2 hours after warm-up and ±3°C) | <50 |
| Pointing Stability Over Temperature (µrad/°C) | <8 |
| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10-35 |

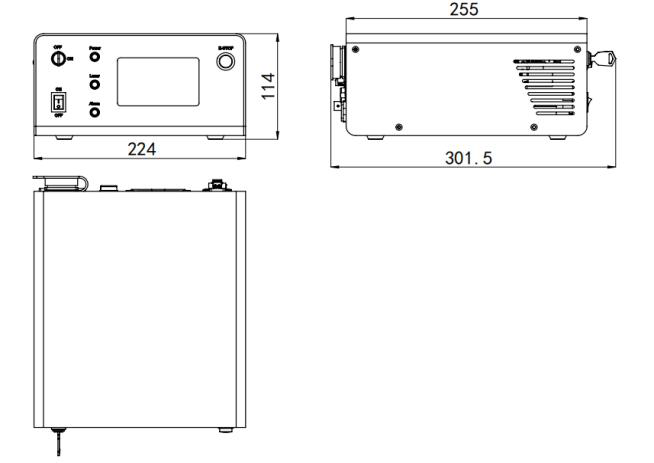

| Power Supply (100-240VAC) | PSU-H-FDA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MSL-T-729
Please request a quotation for a real price and lead time.
