MSL-U-1122-SU 1122 nm Single Longitudinal Mode Infrared Laser
$1,000,000.00
Description: Single longitudinal mode infrared laser at 1122 nm featuring ultra compact design, long lifetime and ease of operation.
Applications: Raman spectroscopy, speckle interferometry, bio-instrumentation, metrology, sensing, analytical instrumentation
Model #: MSL-U-1122-SU
| Wavelength (nm) | 1122±1 |
| Operating Mode | CW |
| Output Power (mW) | 1-250 |
| Power Stability (rms, 4 hours ± 3°C) | <3%, <2%, <1% |
| Transverse Mode | TEM00 |
| Longitudinal Mode | Single |
| Spectral Line Width (MHz) | <1 |
| Noise of Amplitude (rms, 20 Hz-20 MHz) | <1% |
| M2 | <1.2 |
| Beam Diameter at the Aperture (1/e2, mm) | <1.0 |
| Beam Divergence (mrad) | <1.5 |
| Polarization Ratio | >100:1, Horizontal (Vertical optional) |
| Warm-up Time (minutes) | <5 |
| Pointing Stability (μrad, over 2 hours after warm-up and ±3°C) | <50 |
| Beam Height from Base Plate (mm) | 29 |
| Operating Temperature (°C) | 10-35 |

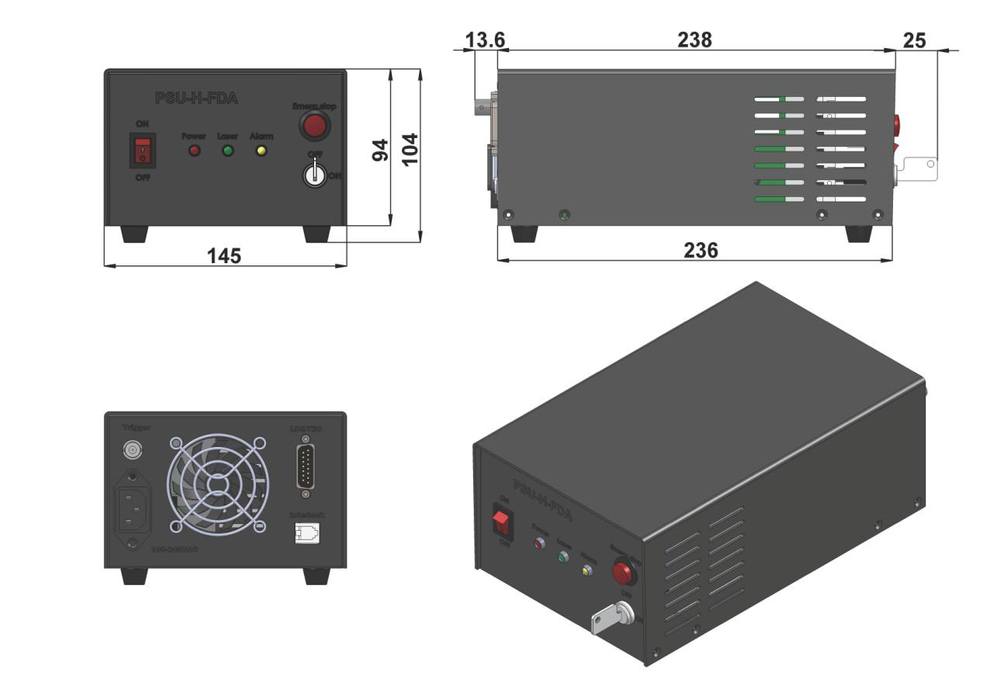

| Power Supply (100-240 VAC) | PSU-H-FDA/PSU-H-LED/PSU-SR |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MSL-U-1122-SU
Please request a quotation for a real price and lead time.
