OEM-AD-520-LS 520 nm High Power Green Diode Laser
$1,000,000.00
Description: The 520nm diode laser features an ultra-compact design, a long lifetime, and easy operation. It is also easy to install in customers' equipment.
Applications: industrial, medical, biomedical
Model #: OEM-AD-520-LS
| Model | OEM-AD-520-LS |
| Wavelength (nm) | 520±5 |
| Output Power (W) | 60 |
| Operating Mode | CW |
| Beam Diameter at the Aperture (mm) | 10.5×11 |
| Beam Divergence, Full Angle (mrad) | ~1.2 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1% |
| Cooled Method | Air cooled |
| Warm-Up Time (minutes) | <5 |

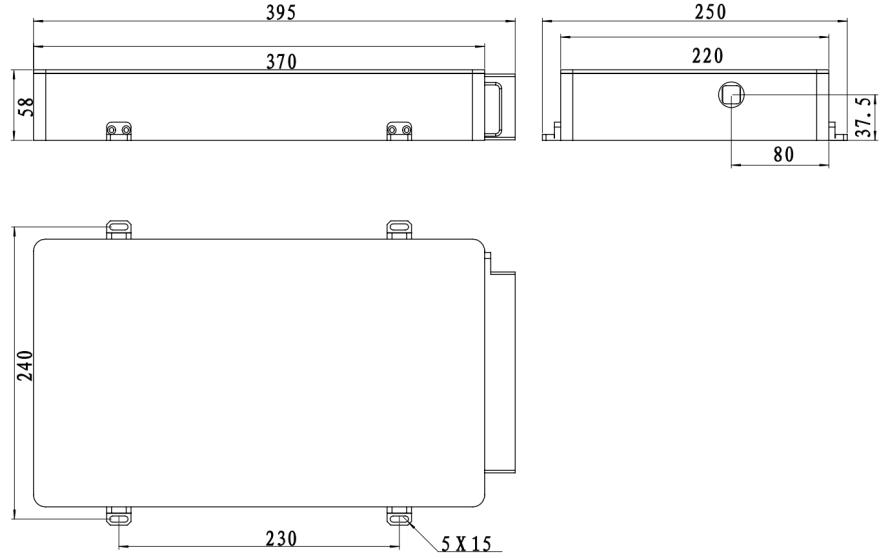

| Beam Height from Base Plate (mm) | 37.5 |
| Operating Temperature (℃) | 0-30 |
| Power Supply (24VDC) | PSU-PNDT-OEM (24V/14.6A) |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # OEM-AD-520-LS
Please request a quotation for a real price and lead time.
