OEM-BD-455 455 nm High Power Blue Diode Laser
$1,000,000.00
Description: The 455nm diode laser features an ultra-compact design, a long lifetime, and easy operation. It is also easy to install in customers’ equipment.
Applications: laser projection, stage lighting, biomedical applications, metrology
Model #: OEM-BD-455
| Model | OEM-BD-455 |
| Wavelength (nm) | 455±5 |
| Operating Mode | CW |
| Output Power (W) | 40 |
| Beam Diameter at the Aperture (mm) | 8.5×7 |
| Beam Divergence, Full Angle (mrad) | ~1.2 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1% |
| Cooled Method | Air cooled |
| Warm-Up Time (minutes) | <5 |

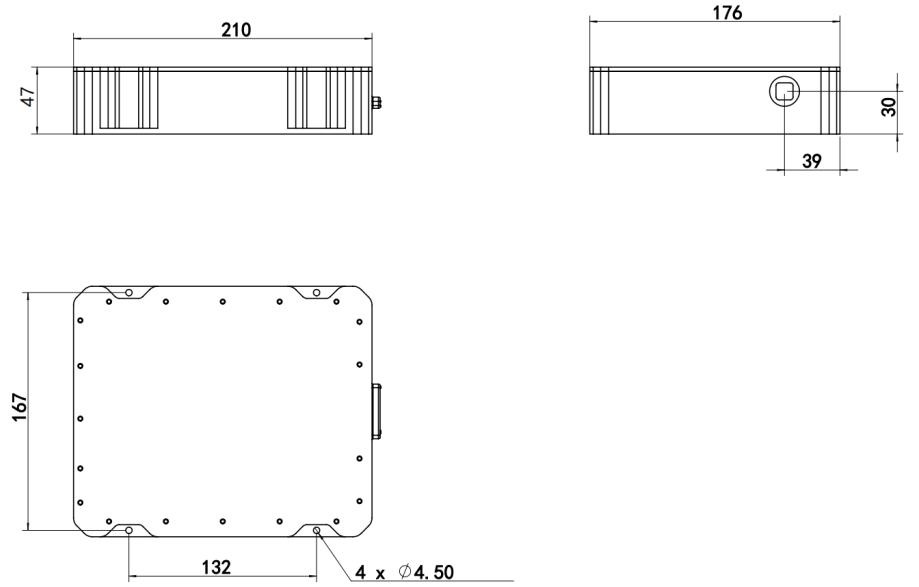

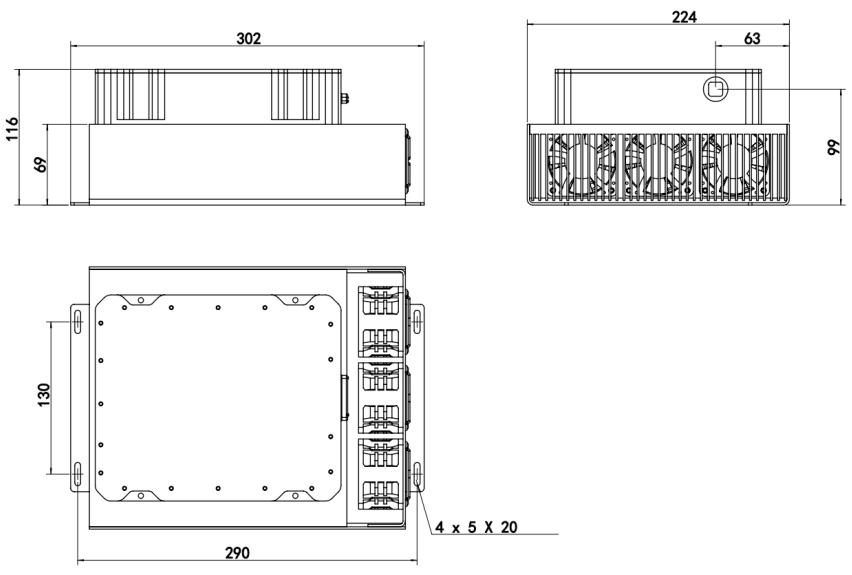

| Beam Height from Base Plate (mm) | 30 (OEM-BD-455) / 99 (BD-455-HS) |
| Operating Temperature (℃) | 0-30 |
| Power Supply (24VDC) | PSU-PNST-OEM (24V/14.6A) |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL/Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # OEM-BD-455
Please request a quotation for a real price and lead time.
