OEM-F-520-LS 520 nm Green Diode Laser (OEM)
$1,000,000.00
Description: OEM green diode laser with compact design, long lifetime and easy operation.
Applications: medical imaging, flow cytometry, DNA sequencing
Model #: OEM-F-520-LS
| Model | OEM-F-520-LS |
| Wavelength (nm) | 520±10 |
| Operating Mode | CW |
| Output Power (mW) | >1, 100, 500, …, 800 |
| Power Stability (rms, over 4 hours) at 25°C | <1%, <3%, <5% |
| Transverse Mode | Multimode |
| Beam Diameter at the Aperture (1/e², mm) | ~1.5×3.5 |
| Beam Divergence, Half Angle (mrad) | <1.3×0.1 |
| Warm-Up Time (minutes) | <5 |

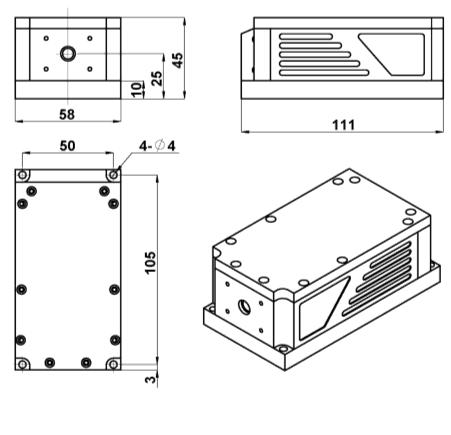

| Beam Height from Base Plate (mm) | 25 (OEM-F-520) / 45 (F-520-HS) |
| Operating Temperature (℃) | 25±3 (OEM-F-520) / 10-35 (F-520-HS) |

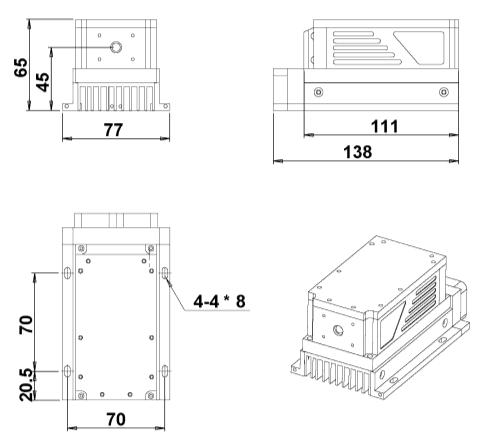

| Power Supply | PSU-SD-OEM |
| Modulation | TTL or Analog with 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # OEM-F-520-LS
Please request a quotation for a real price and lead time.
