OEM-HD-637 637 nm Red Diode Laser
$1,000,000.00
Description: OEM diode red laser at 637nm is made features of long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, laser lighting show, etc.
Applications: measurement, spectrum analysis, laser lighting show
Model #: OEM-HD-637
| Wavelength (nm) | 637±5 |
| Output Power (mW) | >1000, >1500, >2000 |
| Operating Mode | CW |
| Power Stability (rms, over 4 hours) | <1%, <3%, <5% |
| Warm-up Time (minutes) | <5 |
| Beam Divergence, Half Angle (mrad) | <0.5 |
| Beam Diameter at Aperture (mm) | 3.5×4 (1/e²) / 3×3.5 (FWHM) |
| Polarization Direction | Horizontal + Vertical |
| Beam Height from Base Plate (mm) | 35 |
| Operating Temperature (℃) | 25±3 |

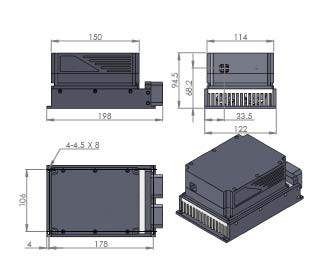

| Power Supply | PSU-D-OEM-H |
| Modulation Option | TTL/Analog 1Hz-5kHz, 1Hz-10kHz, 1Hz-30kHz, and TTL on/off |
| Expected Lifetime (hours) | 10000 |
| Warranty | The warranty is 3 months, excluding the LD failure. |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # OEM-HD-637
Please request a quotation for a real price and lead time.
