OEM-I-405 405 nm Fiber-Coupled Diode Laser (OEM)
$1,000,000.00
Description: The 405 nm diode laser features an ultra-compact design, a long lifetime, and easy operation. It is also easy to install in customers’ equipment.
Applications: OEM integration, medical, scientific research
Model #: OEM-I-405
| Model | OEM-I-405 |
| Wavelength (nm) | 405±5 |
| Operating Mode | CW |
| Fiber Core Diameter | 3µm, 0.12NA |
| Fiber Connector | FC/APC/PC optional |
| Fiber Length¹ | 1m |
| Fiber Jacket | PVC |
| Output Power (mW) @ after Single Mode Fiber² | 1-120 |
| Power Stability (rms, over 4 hours±3℃) | <2%, <1% |
| Warm-Up Time (minutes) | <5 |
| Cooled Method | Conduction |
| Operating Temperature (℃) | 20-30 |

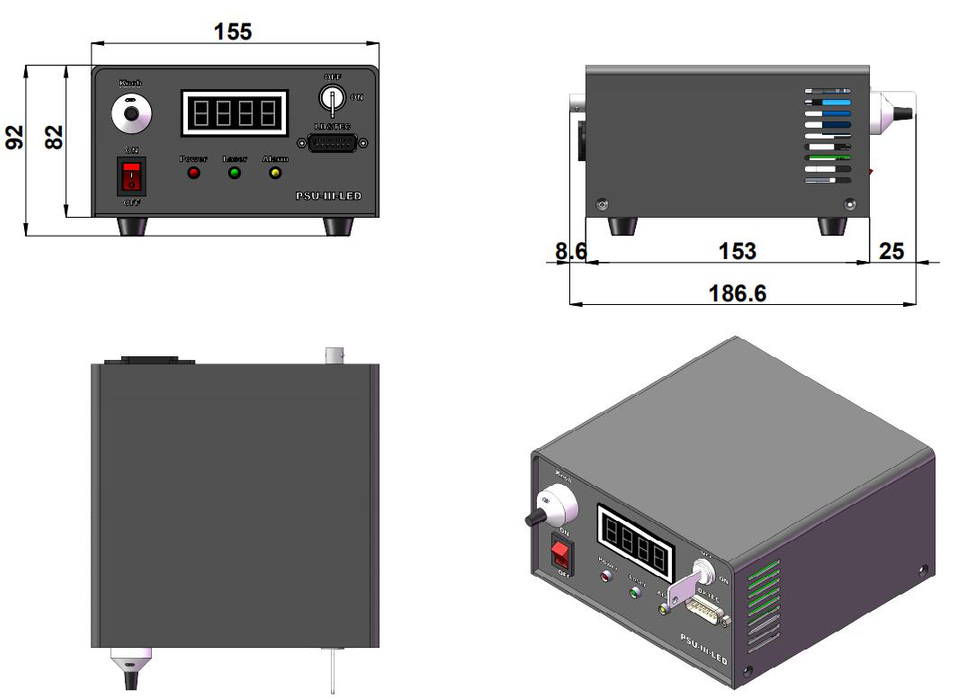

| Power Supply (100-240VAC) | PSU-III-LED |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # OEM-I-405
Please request a quotation for a real price and lead time.
