OEM-XD-637 637 nm Red Diode Laser
$1,000,000.00
Description: OEM diode laser 637nm red laser is made features of ultra compact, long lifetime, low cost and easy operating. It's easy to be installed in customer's equipment.
Applications: measurement, spectrum analysis, laser lighting show
Model #: OEM-XD-637
| Model | OEM-XD-637 |
| Wavelength (nm) | 637±5 |
| Output Power (mW) | 3000, 4000 |
| Operating Mode | CW |
| Power Stability (rms, over 4 hours) at 25℃ | <1%, <3%, <5% |
| Warm-up Time (minutes) | <5 |
| Beam Divergence, Half Angle (mrad) | <1.3×0.6 |
| Beam Diameter at Aperture (mm) | 5×4 (1/e²) / 4.5×3 (FWHM) |
| Polarization Direction | Horizontal + Vertical |

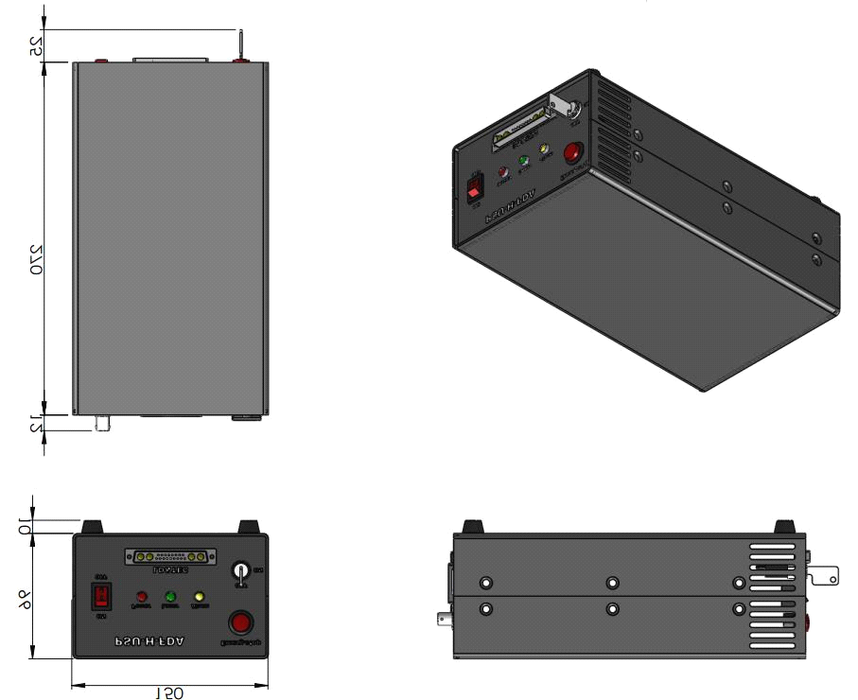

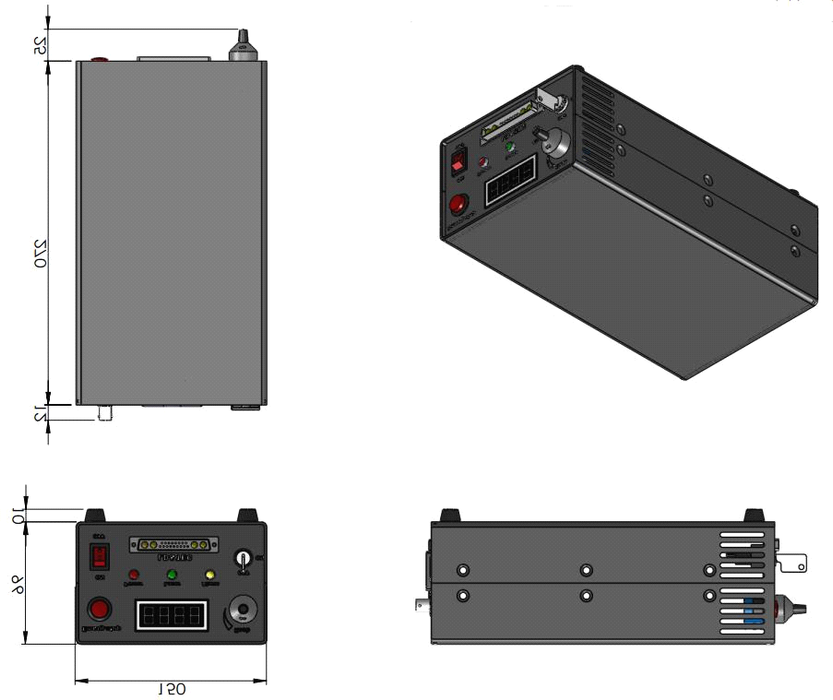

| Beam Height from Base Plate (mm) | 35 (OEM-XD-637) / 89 (XD-637-HS) |
| Operating Temperature (℃) | 25±3 (OEM-XD-637) / 10-35 (XD-637-HS) |
| Power Supply | PSU-N-LED / PSU-N-FDA / PSU-XD-OEM |
| Expected Lifetime (hours) | 10000 |
| Modulation Option | TTL/Analog 1Hz-5kHz, 1Hz-10kHz, 1Hz-30kHz, and TTL on/off |
| Warranty Time | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # OEM-XD-637
Please request a quotation for a real price and lead time.
