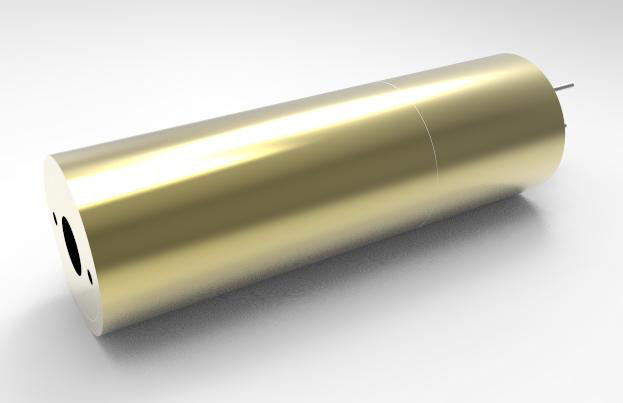

PGL-D12-808 808 nm Infrared Laser Module
$1,000,000.00
Description: Diode infrared laser module at 808nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.
Applications: measurement, communication, spectrum analysis
Model #: PGL-D12-808
| Model | PGL-D12-808 |
| Wavelength (nm) | 808±5 |
| Operating Mode | CW |
| Output Power (mW) | >1, 5, 10, …, 100, 150, …, 400 |
| Transverse Mode | Multimode |
| Beam Diameter at the Aperture (1/e², mm) | ~2.0×4.0 |
| Beam Divergence, Full Angle (mrad) | <5.0 |
| Operating Temperature (℃) | 15~30 |

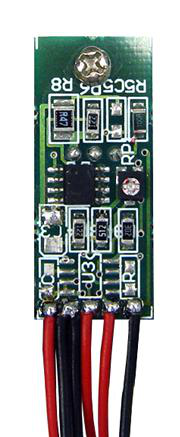

| Power Supply | DC 3V PCB / DC 5V PCB |
| Expected Lifetime (hours) | 10000 |
| Warranty | 6 months |
| Note | The shell is positive electrodes. |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-D12-808
Please request a quotation for a real price and lead time.
