PGL-F-685 685 nm Red Laser Module
$1,000,000.00

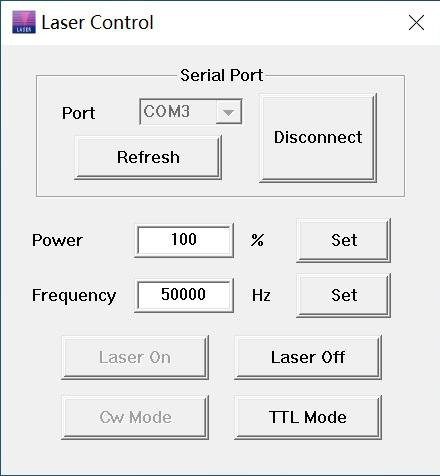

Description: PGL-F series laser is made features of small size, high output power, long lifetime. USB powered with PC control.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: PGL-F-685
| Model | PGL-F-685 |
| Wavelength (nm) | 685±10 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 50 |
| Operating Mode | CW/PC control |
| Noise of Amplitude (rms) | <1%, 0.5% |
| Modulation Frequency (kHz) | 0.1-50 |
| Pointing Stability (mrad/°C) | <0.05 |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-35 |
| Power Supply | USB 5V±0.5V 1A |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-F-685
Please request a quotation for a real price and lead time.
