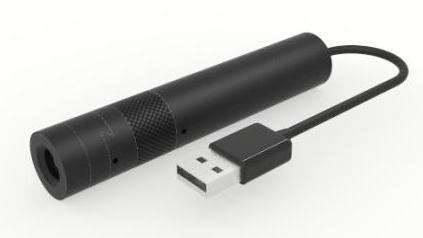

PGL-F-785 785 nm USB Laser Module
$1,000,000.00

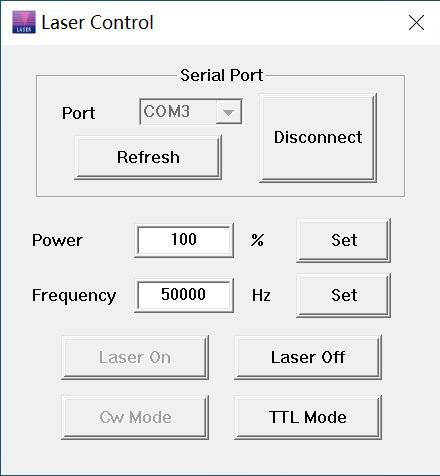

Description: PGL-F series portable laser at 785nm is made features of small size, high stability and long lifetime. It can be controlled by PC and the lens can be changed.
Applications: PC-controlled portable applications
Model #: PGL-F-785
| Model | PGL-F-785 |
| Wavelength (nm) | 785 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 50 |
| Operating Mode | CW / PC control |
| Noise of Amplitude (rms) | <1%, 0.5% |
| Modulation Frequency (kHz) | 0.1-50 |
| Pointing Stability (mrad/℃) | <0.05 |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-35 |
| Power Supply | USB 5V±0.5V 1A |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Dimensions of Laser | Φ19 × 90 mm |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-F-785
Please request a quotation for a real price and lead time.
