PGL-FS-635 635 nm Red Diode Laser Module
$1,000,000.00
Description: Red diode laser at 635 nm is made features of round beam, ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show

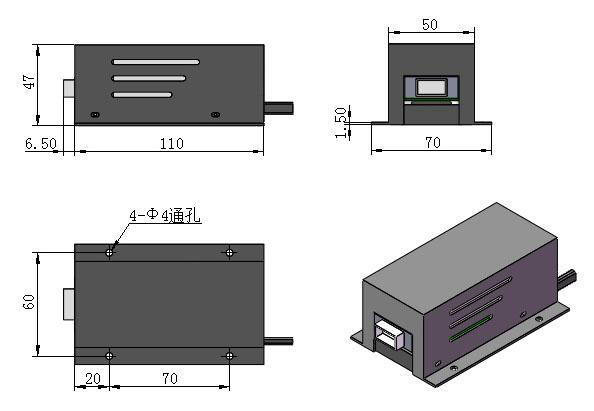

Model #: PGL-FS-635
| Wavelength (nm) | 635±5 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 30, …, 100 |
| Power Stability (rms, over 4 hours) | <1%, <3%, <5% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at Aperture (1/e², mm) | ~3.5 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Warm-up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 15 |
| Operating Temperature (℃) | 10~35 |

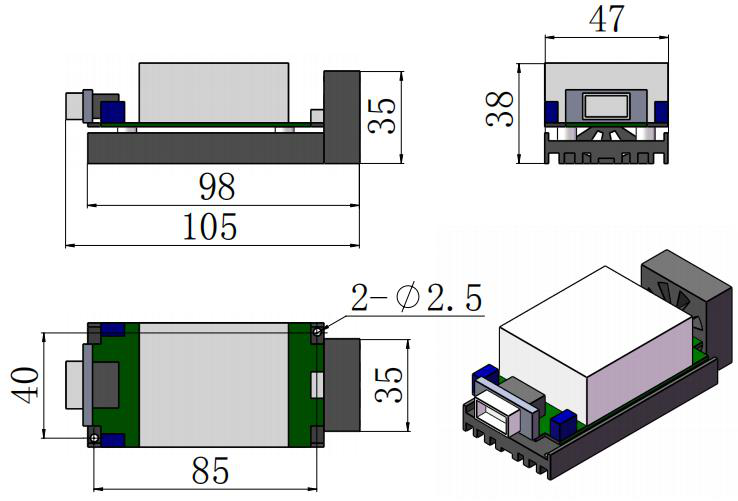

| Power Supply | PSU-V-OEM (90-264VAC) / PSU-I-OEM (5/12VDC) |
| TTL / Analog Modulation | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation option |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-FS-635
Please request a quotation for a real price and lead time.
