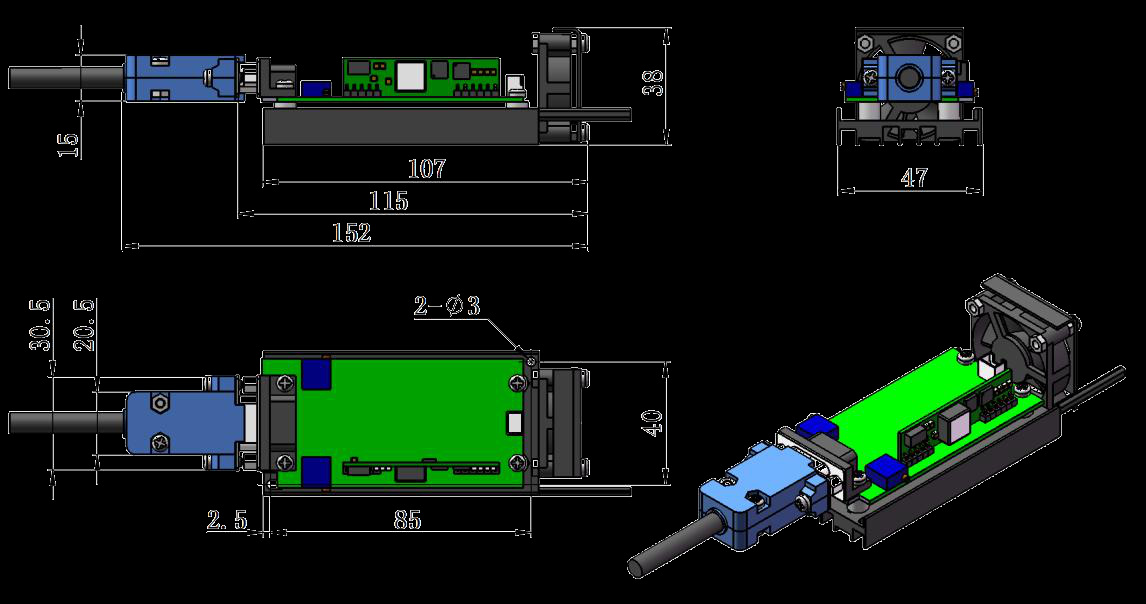

PGL-FS-655 655 nm Red Diode Laser Module
$1,000,000.00
Description: Red diode laser at 655nm is made features of round beam, ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show
Model #: PGL-FS-655
| Wavelength (nm) | 655 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-150 |
| Power Stability (rms, over 4 hours) | <5%, <3%, <1% |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 |
| Beam Diameter at Aperture (1/e², mm) | ~4.5 |
| Beam Divergence, Full Angle (mrad) | <1 |
| Warm-up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 15 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-FS-655
Please request a quotation for a real price and lead time.
