PGL-FS-808 808 nm Infrared Laser Module
$1,000,000.00
Description: Diode infrared laser module at 808nm is made features of ultra compact, long lifetime, low cost and easy operating, which made it be used widely in measurement, communication, spectrum analysis, etc.
Applications: measurement, communication, spectrum analysis
Model #: PGL-FS-808
| Model | PGL-FS-808 |
| Wavelength (nm) | 808 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-100 / 1-200 |
| Power Stability (rms, over 4 hours) | <5%, <3%, <1% |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 / Multimode |
| Beam Diameter at the Aperture (1/e², mm) | ~4.5 / ~6 |
| Beam Divergence, Full Angle (mrad) | <1 / <15 |
| Warm-Up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 15 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |

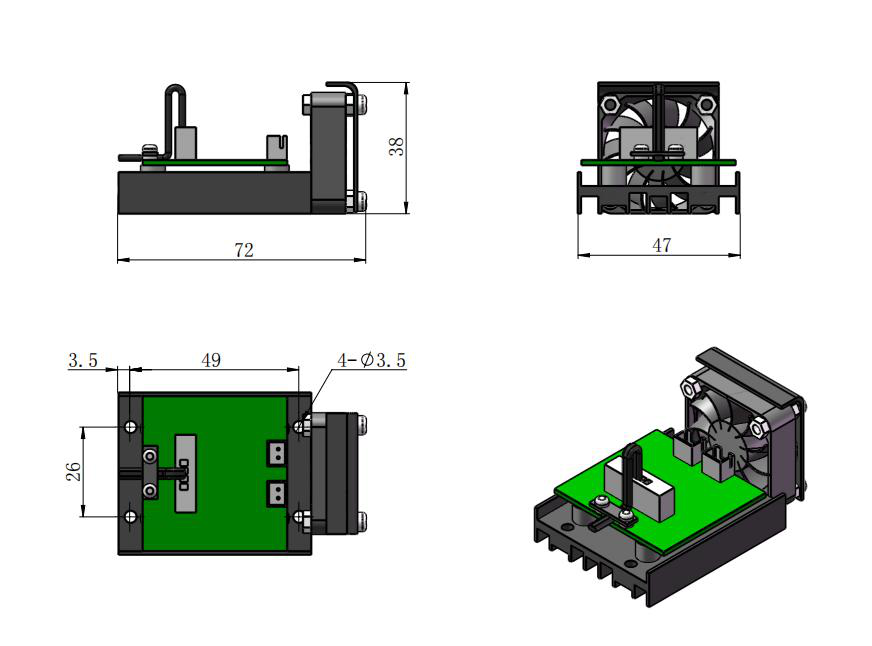

| Operating Voltage (PSU-II-OEM) | 5V (TTL 30kHz or Analog 0-5V, optional) |
| Connection (PSU-II-OEM) | Cable with flying leads |

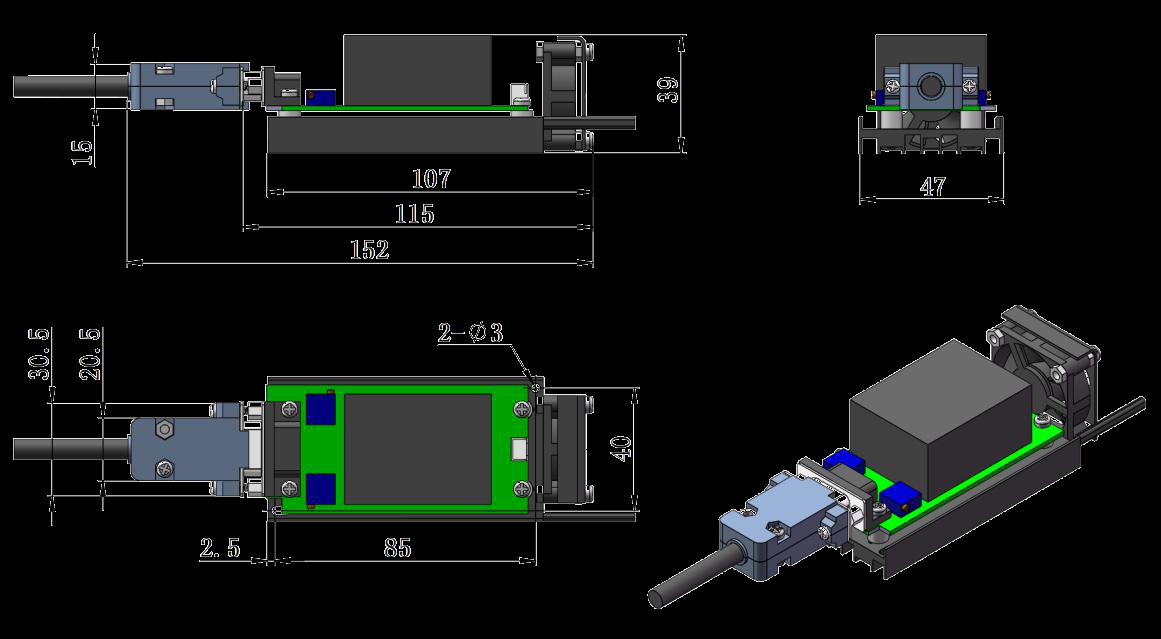

| Operating Voltage (PSU-V-OEM) | 100-240VAC (TTL 30kHz and Analog 0-5V, optional) |
| Operating Voltage (PSU-I-OEM) | 12VDC (TTL 30kHz and Analog 0-5V, optional) |
| Connection (PSU-I-OEM) | 9 pin connector |
| Operating Temperature (°C) | -10 to 50 |
| Storage Temperature (°C) | -20 to 80 |
| Humidity | <90%, non-condensing |

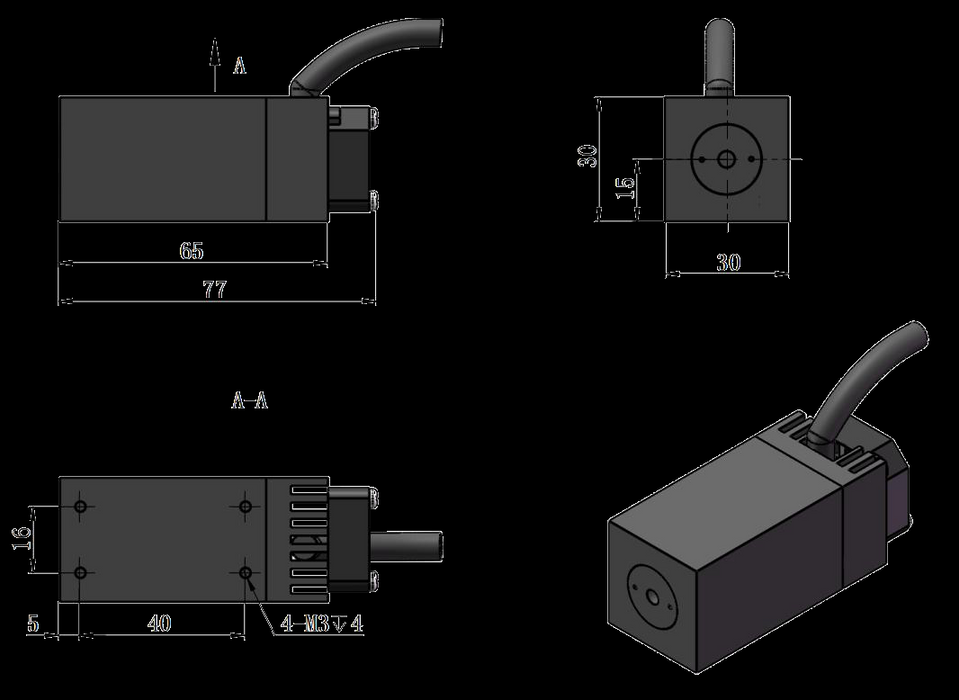

| Dimensions of Laser Head | 77 (L) ×30 (W) ×30 (H) mm |
| Material | Aluminum |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-FS-808
Please request a quotation for a real price and lead time.
