PGL-H-589 589 nm Compact Blue Laser Module
$1,000,000.00
Description: All solid state orange laser at 589nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.
Applications: scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis
Model #: PGL-H-589
| Wavelength (nm) | 589±2 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 15, … , 80 |
| Transverse Mode | TEM00 |
| Beam Diameter at Aperture (1/e², mm) | ~0.1 |
| Beam Divergence, Full Angle (mrad) | <15 |
| Operating Temperature (℃) | 15~30 |

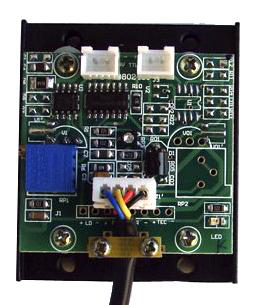

| Power Supply | DC 3V PCB / DC 5V PCB |
| TTL Modulation | Optional, 1Hz-1kHz, 1kHz-10kHz, or higher on request |
| Expected Lifetime (hours) | 10000 |
| Warranty | 6 months |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-H-589
Please request a quotation for a real price and lead time.
