PGL-H-980 980 nm Infrared Laser Module
$1,000,000.00
Description: Diode infrared laser module at 980nm is made features of ultra compact, long lifetime, low cost and easy operating, which made it be used widely in measurement, communication and spectrum analysis, etc.
Applications: measurement, communication, spectrum analysis
Model #: PGL-H-980
| Model | PGL-H-980 |
| Wavelength (nm) | 980 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-1500 |
| Operating Mode | CW |
| Transverse Mode | Multimode |
| Beam Diameter at the Aperture (1/e², mm) | ~6 |
| Beam Divergence, Full Angle (mrad) | <5 |
| Working Time (seconds) | 30 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |

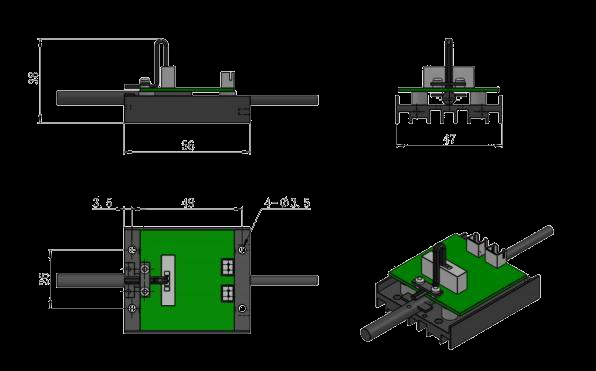

| Operating Voltage (External PCB1) | 3VDC |
| Operating Voltage (External PCB2) | 5VDC (TTL 10kHz or Analog 0-5V, optional) |
| Connection | Cable with flying leads |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -20 to 80 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-H-980
Please request a quotation for a real price and lead time.
