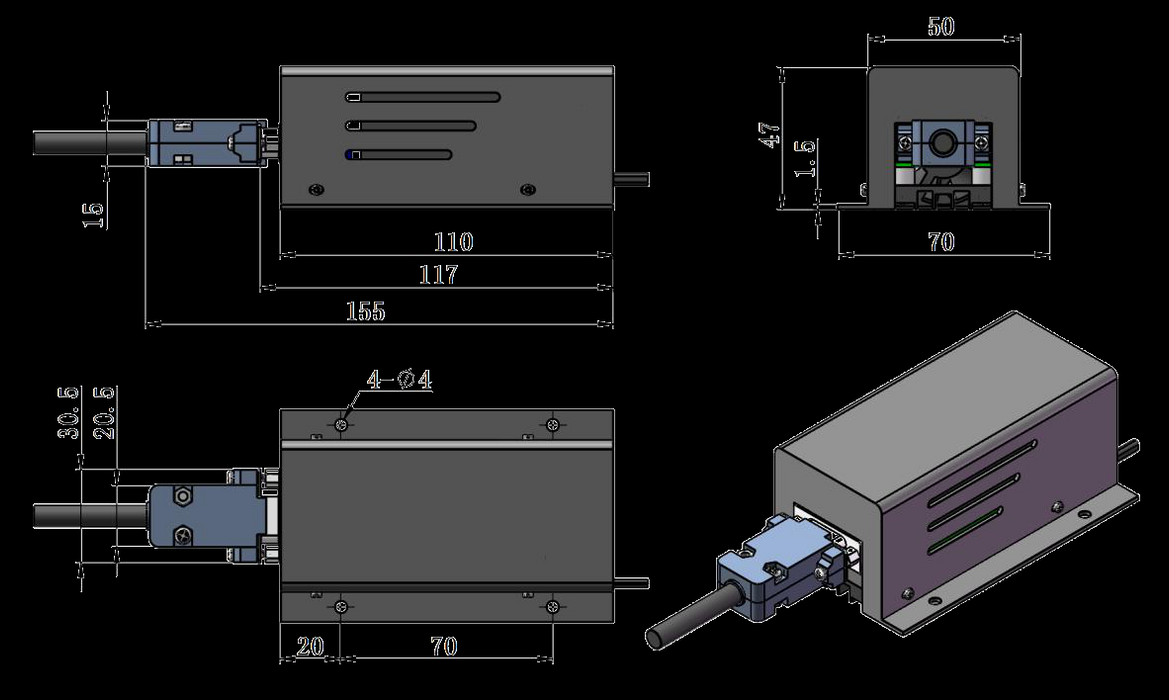

PGL-V-H-1064 1064 nm Compact Infrared Laser Module
$1,000,000.00
Description: Compact OEM infrared laser module at 1064 nm. Ideal for integration into customer systems.
Applications: OEM systems, measurement, machine vision
Model #: PGL-V-H-1064
| Wavelength (nm) | 1064 |
| Wavelength Tolerance (nm) | ±1 |
| Output Power (mW) | 1-800 |
| Power Stability (rms, over 4 hours) | <20%, <10%, <5% |
| Operating Mode | CW |
| Transverse Mode | TEM00 |
| Beam Diameter at the Aperture (1/e2, mm) | ~1.5 |
| Beam Divergence, Full Angle (mrad) | <1.2 |
| Warm-up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 15 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (PSU-V-OEM) | 100-240 VAC |
| Operating Voltage (PSU-I-OEM) | 12 VDC |
| Modulation Option | TTL 10 kHz and Analog 0-5 V |
| Connection | 9 pin connector |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-V-H-1064
Please request a quotation for a real price and lead time.
