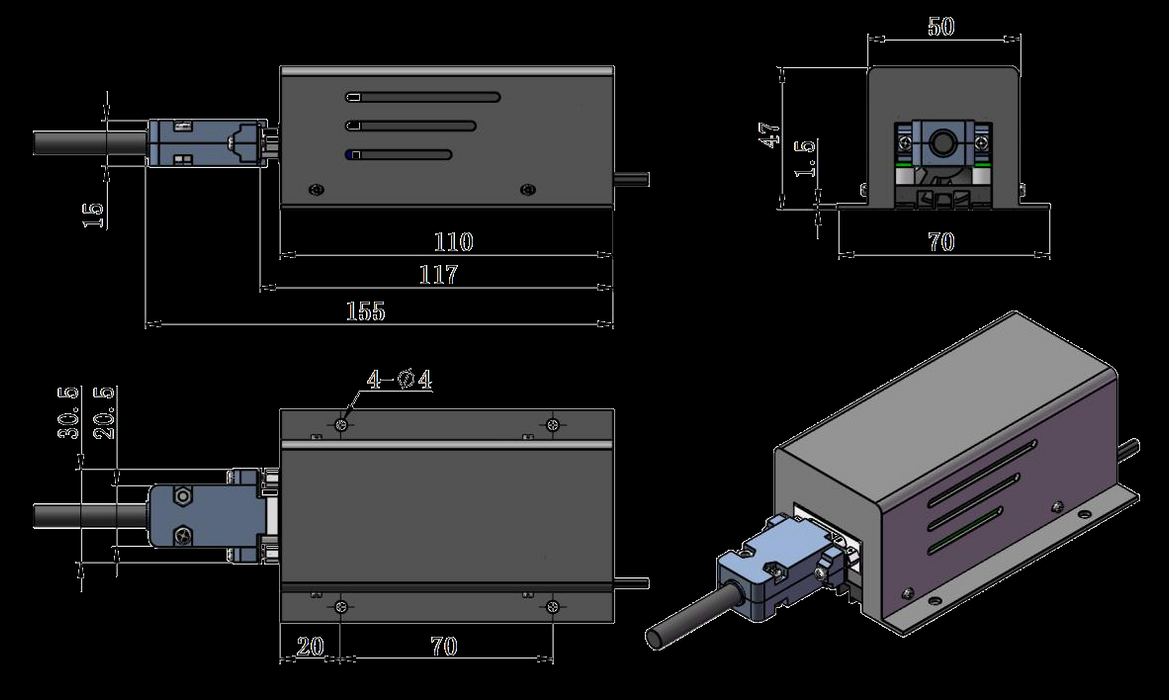

PGL-V-H-1320 1320 nm High Power Infrared Diode Laser Module
$1,000,000.00
Description: Infrared diode laser module at 1320 nm featuring ultra compact, long lifetime, low cost and easy operation.
Applications: industrial alignment, machine vision, inspection, positioning
Model #: PGL-V-H-1320
| Wavelength (nm) | 1320 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-1000 |
| Power Stability (rms, over 4 hours) | <3%, <2%, <1% |
| Operating Mode | CW |
| Transverse Mode | Multimode |
| Beam Diameter (mm) | ~4×6 |
| Warm-up Time (minutes) | <5 |
| Expected Lifetime (hours) | >10000 |
| Operating Voltage (PSU-V-OEM) | 5 VDC |
| Operating Voltage (PSU-I-OEM) | 12 VDC |
| Operating Temperature (°C) | 10-35 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-V-H-1320
Please request a quotation for a real price and lead time.
