PGL-V-H-405 405 nm Diode Laser Module
$1,000,000.00
Description: Compact diode laser module with long lifetime and easy operating.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: PGL-V-H-405
| Model | PGL-V-H-405 |
| Wavelength (nm) | 405 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-150 / 1-800 |
| Power Stability (rms, over 4 hours) | <5%, <3%, <1% |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 / Multimode |
| Beam Diameter at the Aperture (1/e², mm) | ~4.5 / ~2×4 |
| Beam Divergence, Full Angle (mrad) | <0.5 / <3×0.5 |
| Warm-Up Time (minutes) | <10 |

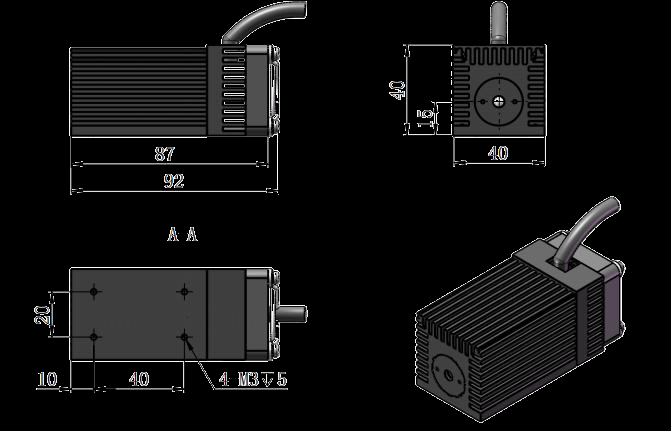

| Beam Height from Base Plate (mm) | 15 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-V-H-405
Please request a quotation for a real price and lead time.
