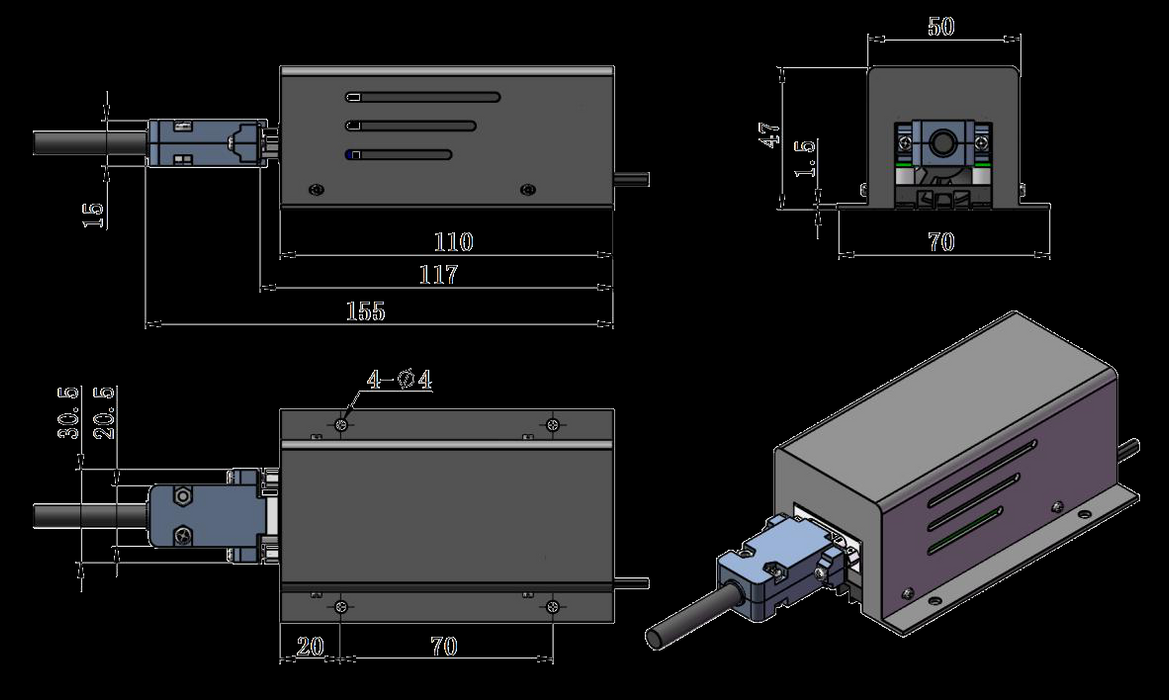

PGL-V-H-655 655 nm High Power Red Laser Module
$1,000,000.00
Description: High power red diode laser module at 655nm with ultra compact design, long lifetime, low cost and easy operating. Ideal for integration into customer equipment.
Applications: measurement, spectrum analysis, laser lighting show, instrumentation
Model #: PGL-V-H-655
| Wavelength (nm) | 655 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-150 / 1-1000 |
| Power Stability (rms, over 4 hours) | <5%, <3%, <1% |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 / Multimode |
| Beam Diameter at Aperture (1/e², mm) | ~4.5 / ~5×8 |
| Beam Divergence, Full Angle (mrad) | <1.5 / <3.5 |
| Warm-up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 15 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-V-H-655
Please request a quotation for a real price and lead time.
