PGL-V-H-730 730 nm Red Laser Module
$1,000,000.00
Description: PGL-V-H red laser module at 730nm is made features of small size, high output power, long lifetime.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: PGL-V-H-730
| Model | PGL-V-H-730 |
| Wavelength (nm) | 730 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-1500 |
| Power Stability (rms, over 4 hours) | <5%, <3%, <1% |
| Operating Mode | CW |
| Transverse Mode | Multimode |
| Beam Diameter at the Aperture (1/e², mm) | ~4×6 |
| Beam Divergence, Full Angle (mrad) | <5 |
| Warm-Up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 15 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (PSU-V-OEM) | 100-240VAC |
| Operating Voltage (PSU-I-OEM) | 12VDC |
| Modulation | TTL 30kHz and Analog 0-5V optional |
| Connection | 9 pin connector |
| Operating Temperature (℃) | -10 to 50 |
| Storage Temperature (℃) | -20 to 80 |
| Humidity | <90%, non-condensing |

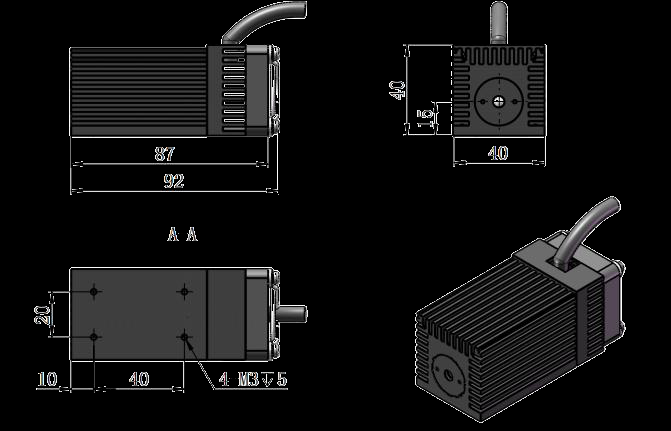

| Dimensions of Laser Head | 92 (L) ×40 (W) ×40 (H) mm |
| Material | Aluminum |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-V-H-730
Please request a quotation for a real price and lead time.
