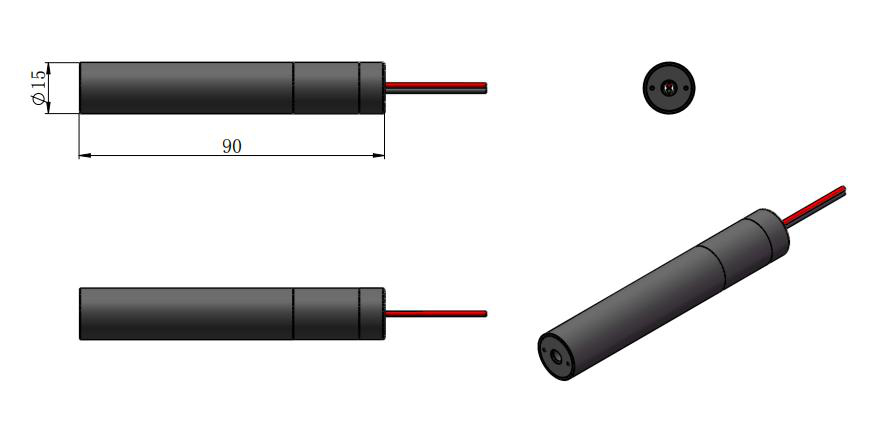

PGL-VI-520 520 nm Compact Green Laser Module
$1,000,000.00
Description: PGL-VI high power green laser module features small size, high output power and long lifetime.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: PGL-VI-520
| Model | PGL-VI-520 |
| Wavelength (nm) | 520 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-100 |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture (1/e², mm) | ~4.5 |
| Beam Divergence, Full Angle (mrad) | <1 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (internal PCB) | 7.5-8VDC |
| Operating Voltage (internal PCB1) | 5VDC (TTL 30kHz and Analog 0-3V, 0-5V optional) |
| Operating Voltage (external PCB2) | 5-12VDC (TTL 30kHz and Analog 0-3V, 0-5V optional) |
| Connection | Cable with flying leads |
| Operating Temperature (℃) | 0 to 40 |
| Storage Temperature (℃) | -20 to 80 |
| Humidity | <90%, non-condensing |
| Material | Aluminum |
| Shell Polarity | The housing is isolated. |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-VI-520
Please request a quotation for a real price and lead time.
