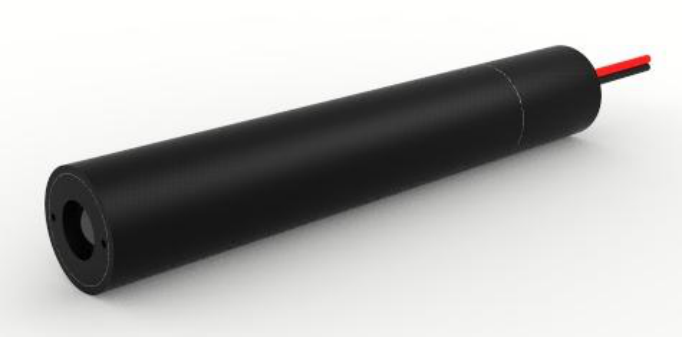

PGL-VI-532 532 nm Compact Green Laser Module
Description: PGL-VI high power green laser module features small size, high output power and long lifetime.
Applications: orientation, alignment and measurement, etc.
Model #: PGL-VI-532
| Model | PGL-VI-532 |
| Wavelength (nm) | 532 |
| Wavelength Tolerance (nm) | ±1 |
| Output Power (mW) | 1-80 |
| Operating Mode | CW |
| Transverse Mode | TEM00 |
| Beam Diameter at the Aperture (1/e², mm) | ~1.5 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (internal PCB) | 3VDC |
| Operating Voltage (external PCB1) | 3VDC |
| Operating Voltage (external PCB2) | 5VDC |
| Connection | Cable with flying leads |
| Operating Temperature (℃) | 10 to 35 |
| Storage Temperature (℃) | -20 to 80 |
| Humidity | <90%, non-condensing |
| Dissipated Heat (W) | <3 |
| Dimensions of PGL-VI-532 | Φ15×90 mm² |
| Dimensions of PGL-VI-1-532 | Φ12×35 mm² |
| Dimensions of PGL-VI-2-532 | Φ12×32 mm² |
| Material | Aluminum/Copper |
| Shell Polarity | The housing of PGL-VI-532 is isolated; PGL-VI-1-532 and PGL-VI-2-532 have a positive electrode. |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-VI-532
